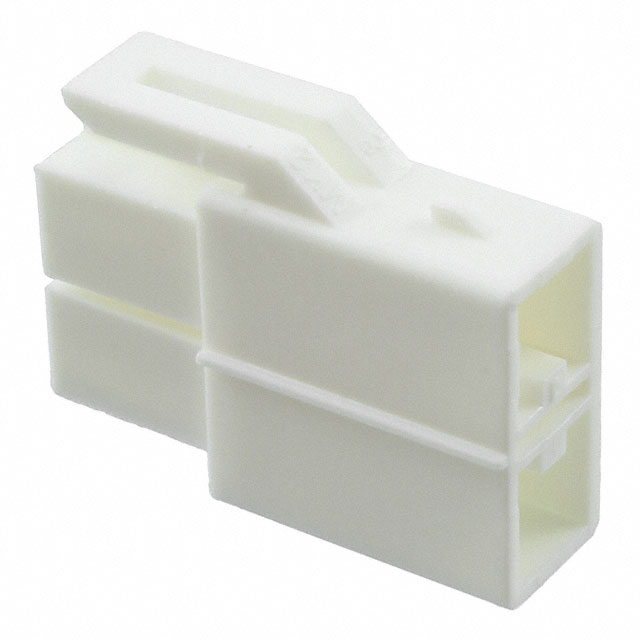

0351810200

Active

Molex

CONN HSG RCPT 2POS NATURAL

Search across all available documentation for this part.

Active

Molex

CONN HSG RCPT 2POS NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	0351810200

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Blade Socket
Fastening Type	Locking Ramp
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Row Spacing	8 mm
Row Spacing	0.315 in
Stacking Direction	Top to Bottom

Part	Contact Type	Note	Connector Type	Contact Termination	Number of Rows	Number of Positions	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Stacking Direction	Fastening Type	Row Spacing	Row Spacing	Color
Molex 0351810214
Molex 0351810200	Female Blade Socket	Contacts Not Included	Receptacle	Crimp	2	2	Free Hanging (In-Line)	-40 °C	120 °C	Polybutylene Terephthalate (PBT)	Top to Bottom	Locking Ramp	8 mm	0.315 in	Natural
Molex 0351810210	Female Blade Socket	Contacts Not Included	Receptacle	Crimp	2	2	Free Hanging (In-Line)	-40 °C	120 °C	Polybutylene Terephthalate (PBT)	Top to Bottom	Latch Lock	8 mm	0.315 in	Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30000	$ 0.07

General part information

2 Position Blade Type Power Housing Connector Receptacle Natural
