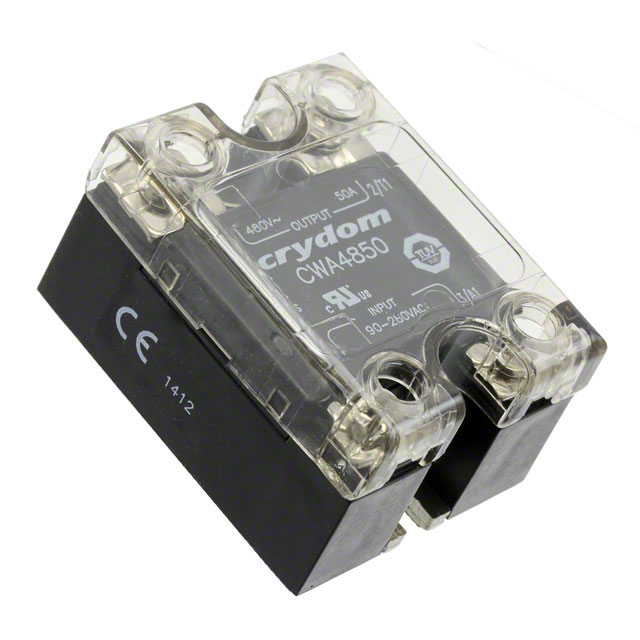

CWA4850H
ActiveSensata-Crydom
SSR RELAY SPST-NO 50A 48-660V
Deep-Dive with AI
Search across all available documentation for this part.
CWA4850H
ActiveSensata-Crydom
SSR RELAY SPST-NO 50A 48-660V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CWA4850H |
|---|---|
| Approval Agency | CSA, TUV, cURus, CE |
| Load Current | 50 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 280 VAC/DC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Load [Max] | 660 V |
| Voltage - Load [Min] | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 95.12 | |
| 10 | $ 90.59 | |||
| 50 | $ 86.47 | |||
| 100 | $ 83.93 | |||
Description
General part information
CWA4850 Series
Solid State SPST-NO (1 Form A) Hockey Puck
Documents
Technical documentation and resources
