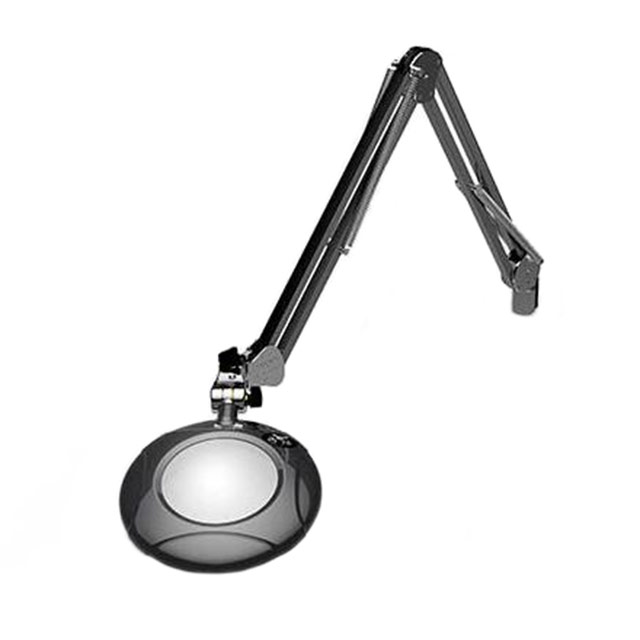

22400-5-B

Active

O.C. White Co.

LAMP MAGNIFIER 5 DIOPTER CLAMP

Search across all available documentation for this part.

Active

O.C. White Co.

LAMP MAGNIFIER 5 DIOPTER CLAMP

Technical Specifications

Parameters and characteristics for this part

Part	Color	Lens Style/Size [diameter]	Lens Style/Size	Lens Style/Size [diameter]	Cord Length	Cord Length	Cord Length	Mounting Type	Arm [x]	Arm [x]	Bulb	Lamp/Magnifier Type	Voltage [Max]	Voltage [Min]	Lens Style/Size	Lens Style/Size
O.C. White Co. 22400-BR	Red	127 mm	3 Diopter	5 in	NEMA 5-15P	1.83 m	6 '	Edge Clamp	43 in	1092.2 mm	LED White	Lamp Magnifier	240 V	100 V
O.C. White Co. 22400-4-SW	White		4 Diopter 5 in		NEMA 5-15P	1.83 m	6 '	Edge Clamp	43 in	1092.2 mm	LED White	Lamp Magnifier	240 V	100 V	127 mm
O.C. White Co. 22400-4-B	Black		4 Diopter 5 in		NEMA 5-15P	1.83 m	6 '	Edge Clamp	43 in	1092.2 mm	LED White	Lamp Magnifier	240 V	100 V	127 mm
O.C. White Co. 22400-5-B	Black	127 mm	5 Diopter	5 in	NEMA 5-15P	1.83 m	6 '	Edge Clamp	43 in	1092.2 mm	LED White	Lamp Magnifier	240 V	100 V		2.25x

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 419.00

General part information

Lamp, Magnifier 5 Diopter, (2.25x) 5.00" (127.00mm) Diameter LED, White
