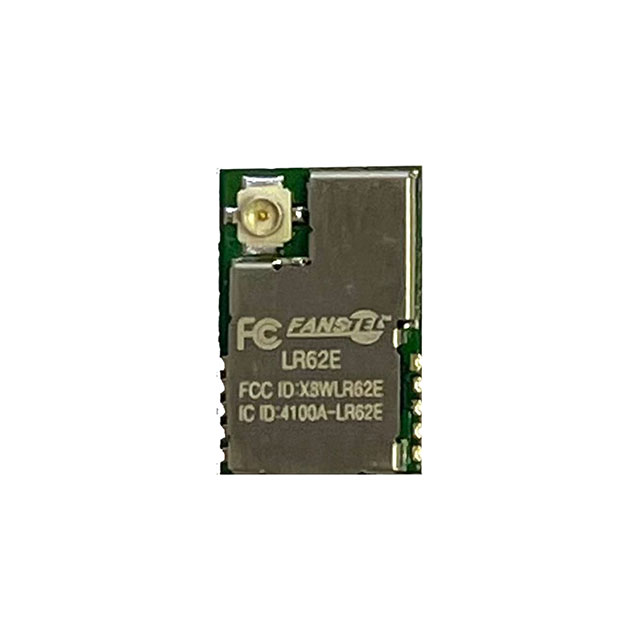

LR62E
ActiveFanstel Corp.
RF TRANSCEIVER 3.3V 10-PIN SMD MODULE T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LR62E
ActiveFanstel Corp.
RF TRANSCEIVER 3.3V 10-PIN SMD MODULE T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LR62E |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 4.2 mA |
| Frequency [Max] | 928 MHz |
| Frequency [Min] | 902 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 22 dBm |
| Protocol | LoRa |
| Serial Interfaces | SPI |
| Utilized IC / Part | SX1262 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 16.20 | |
| 10 | $ 12.62 | |||
| 25 | $ 11.57 | |||
| 100 | $ 10.30 | |||
| 250 | $ 9.63 | |||
| 500 | $ 9.20 | |||
| Digi-Reel® | 1 | $ 16.20 | ||
| 10 | $ 12.62 | |||
| 25 | $ 11.57 | |||
| 100 | $ 10.30 | |||
| 250 | $ 9.63 | |||
| 500 | $ 9.20 | |||
| Tape & Reel (TR) | 1000 | $ 8.33 | ||
Description
General part information
LR62 Series
LoRa Transceiver Module 902MHz ~ 928MHz Antenna Not Included, U.FL Surface Mount
