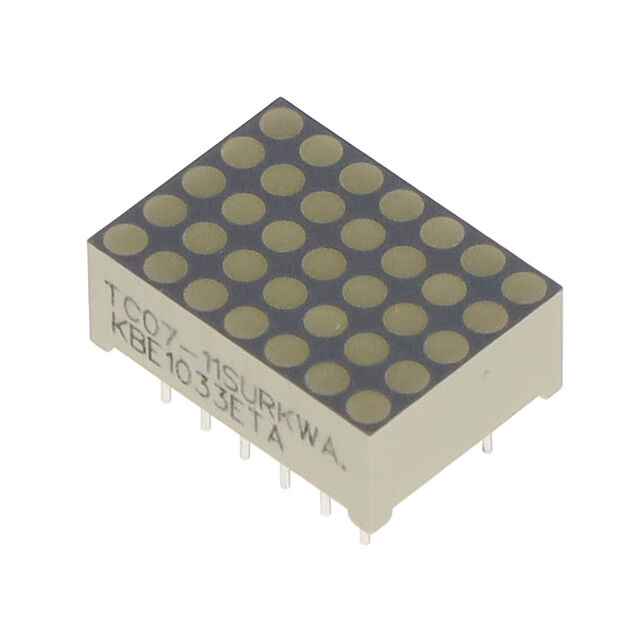

TC07-11SURKWA

Active

Kingbright

LED MATRIX 5X7 0.7 630NM RED

Search across all available documentation for this part.

Active

Kingbright

LED MATRIX 5X7 0.7 630NM RED

Technical Specifications

Parameters and characteristics for this part

Specification	TC07-11SURKWA

Color	Red
Configuration [x]	5
Configuration [y]	7
Internal Connection	Common Cathode Column, Common Anode Row
Millicandela Rating	90 mcd
Size / Dimension [x]	0.7 in
Size / Dimension [x]	17.78 mm
Size / Dimension [y]	0.5 in
Size / Dimension [y]	12.7 mm
Size / Dimension [z]	0.25 "
Size / Dimension [z]	6.4 mm
Voltage - Forward (Vf) (Typ)	1.95 V

Part	Color	Configuration [y]	Configuration [x]	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Internal Connection	Size / Dimension [z]	Size / Dimension [y]	Interface
Kingbright TC07-11GWA	Green	7	5	12 mcd	2.2 V	17.78 mm	0.25 "	12.7 mm	0.7 in	0.5 in	6.4 mm	Common Anode Row Common Cathode Column
Kingbright TC07-11YWA	Yellow	7	5		2.1 V		0.25 "	12.7 mm	0.7 in	0.5 in		Common Anode Row Common Cathode Column	6.4 mm	17.78 mm
Kingbright TC07-11SURKWA	Red	7	5	90 mcd	1.95 V		0.25 "	17.78 mm	0.5 in	0.7 in		Common Anode Row Common Cathode Column	6.4 mm	12.7 mm
Kingbright TC07-11EWA	Red	7	5	8.2 mcd	2 V	17.8 mm	0.25 "	12.7 mm	0.7 in	0.5 in	6.3 mm	Common Anode Row Common Cathode Column
Kingbright TC07-11CGKWA	Green	7	5	38 mcd	2.1 V		0.25 "	17.78 mm	0.5 in	0.7 in		Common Anode Row Common Cathode Column	6.4 mm	12.7 mm
Kingbright TC07-11SYKWA	Yellow	7	5	140 mcd	2 V		0.25 "	17.78 mm	0.5 in	0.7 in		Common Anode Row Common Cathode Column	6.4 mm	12.7 mm	ASCII EBCDIC
Kingbright TC07-11SRWA	Red	7	5	34 mcd	1.85 V	17.78 mm	0.25 "	12.7 mm	0.7 in	0.5 in	6.4 mm	Common Anode Row Common Cathode Column

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dot Matrix Display Module 5 x 7 Common Anode Row, Common Cathode Column Red 1.95V 0.70" L x 0.50" W x 0.25" H (17.78mm x 12.70mm x 6.40mm)
