QADC-45-20-08CB
ActiveQualtek

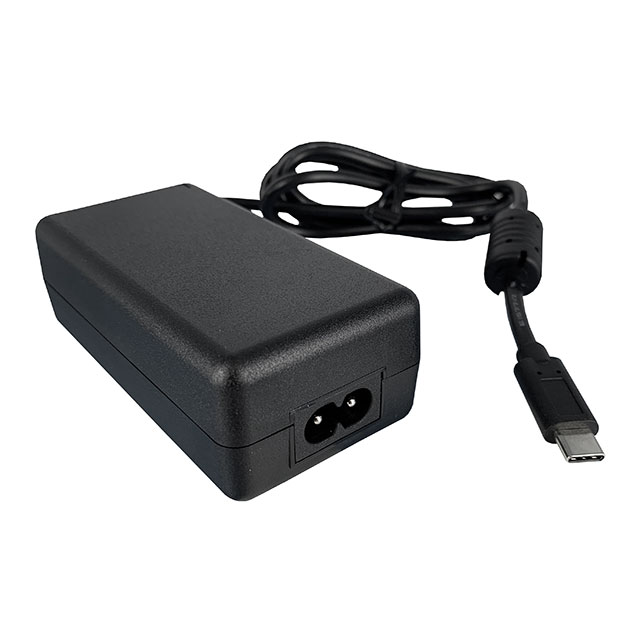

AC/DC DESKTOP ADAPTER 20V 45W
Deep-Dive with AI
Search across all available documentation for this part.
QADC-45-20-08CB
ActiveQualtek
AC/DC DESKTOP ADAPTER 20V 45W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QADC-45-20-08CB |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, PSE, FCC, BSMI, CB, CE, RCM, GS |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) [Max] | 2.25 A |
| Efficiency | Level VI |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | USB C |
| Power (Watts) | 45 W |
| Region Utilized | International |
| Size / Dimension [x] | 3.9 " |
| Size / Dimension [x] | 99 mm |
| Size / Dimension [y] | 1.96 " |
| Size / Dimension [y] | 49.9 mm |
| Size / Dimension [z] | 32.8 mm |
| Size / Dimension [z] | 1.29 in |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.96 | |
Description
General part information
QADC-45 Series
20V 45 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
