09360062702

Active

HARTING Technology Group

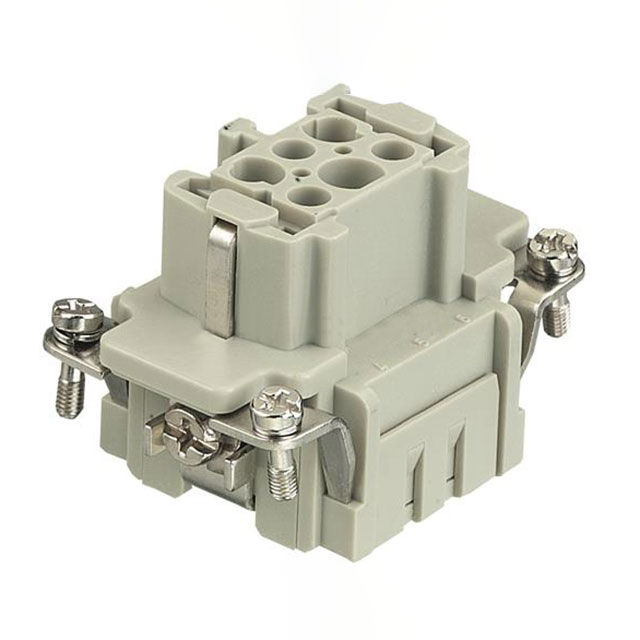

HAN 6E EX FEMALE CRIMP INSERT (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 6E EX FEMALE CRIMP INSERT (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Technical Specifications

Parameters and characteristics for this part

Specification	09360062702

Color	Gray
Connector Type	Insert without Contacts
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	6+Ground
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	6B
Termination Style	Crimp
Voltage Rating	90 V

Part	Size	Current Rating (Amps)	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Gender	Housing Material	Color	Termination Style	Material Flammability Rating	Number of Positions
HARTING Technology Group 09360062702	6B	16 A	90 V	-20 C	40 °C	Insert without Contacts	Female	Polycarbonate (PC)	Gray	Crimp	UL94 V-0	6+Ground
HARTING Technology Group 09360062602	6B	16 A	90 V	-20 C	40 °C	Insert without Contacts	Male	Polycarbonate (PC)	Gray	Crimp	UL94 V-0	6+Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Gray 6+Ground Position Crimp
