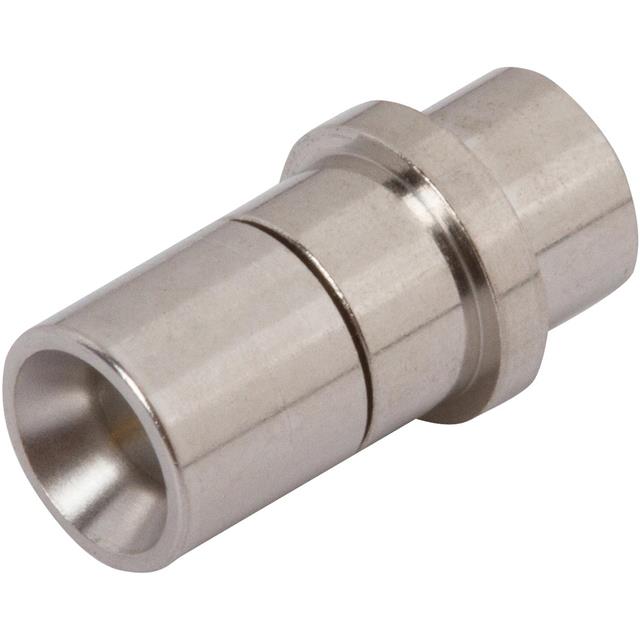

1132-6116

Active

Amphenol SV Microwave

SMPM FD MALE TO SB MALE VITA 67.

Search across all available documentation for this part.

Active

Amphenol SV Microwave

SMPM FD MALE TO SB MALE VITA 67.

Technical Specifications

Parameters and characteristics for this part

Specification	1132-6116

Adapter Series	SMPM to SMPM
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	SMPM Plug, Male Pin
Convert To (Adapter End)	Male Pin, SMPM Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Smooth Bore, Full Detent
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mating Cycles	500, 100
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Mating Cycles	Dielectric Material	Convert From (Adapter End)	Center Contact Material	Convert To (Adapter End)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Conversion Type	Body Material	Adapter Series	Impedance	Style	Frequency - Max [Max]	Adapter Type	Center Gender	Features	Center Contact Plating	Fastening Type
Amphenol SV Microwave 1132-6116	100 500	Polytetrafluoroethylene (PTFE)	SMPM Plug Male Pin	Beryllium Copper	Male Pin SMPM Plug	Free Hanging (In-Line)	-65 ░C	165 °C	Same Series	Stainless Steel	SMPM to SMPM	50 Ohms	Straight	40 GHz	Plug to Plug	Male to Male	Full Detent Smooth Bore	Gold	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMPM Plug, Male Pin To SMPM Plug, Male Pin 50 Ohms
