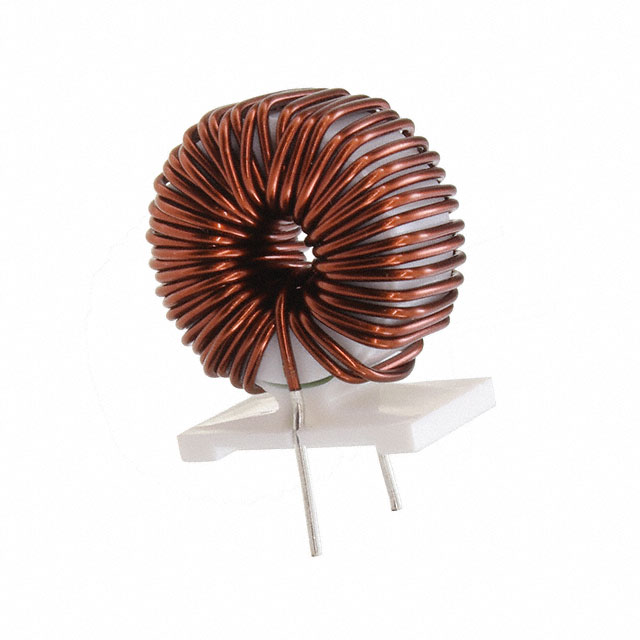

SN10-500J

Active

KEMET

COMMON MODE CHOKE, 110UH, 3A

Search across all available documentation for this part.

Active

KEMET

COMMON MODE CHOKE, 110UH, 3A

Technical Specifications

Parameters and characteristics for this part

Part	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Number of Lines	DC Resistance (DCR) (Max) [Max]	Package / Case	Package / Case	Filter Type	Inductance @ Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Max) [Max]	Mounting Type	Height (Max)
KEMET SN10-400	0.886 in	22.5 mm	2	42 mOhm	No Base Vertical	2 Lead	Power Line	72 µH	-25 °C	105 ░C	3 A	Through Hole
KEMET SN10-500J	1.024 in		2		Vertical 2 PC Pin		Power Line	110 µH	-25 °C	105 ░C	3 A	Through Hole	26 mm
KEMET SN10-300J	1.024 in		2	41 mOhm	Vertical 2 PC Pin		Power Line	40 µH	-25 °C	105 ░C	3 A	Through Hole	26 mm
KEMET SN10-300	0.886 in	22.5 mm	2	35 mOhm	No Base Vertical	2 Lead	Power Line	40 µH	-25 °C	105 ░C	3 A	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

110 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 3A DCR
