0831205

Active

Phoenix Contact

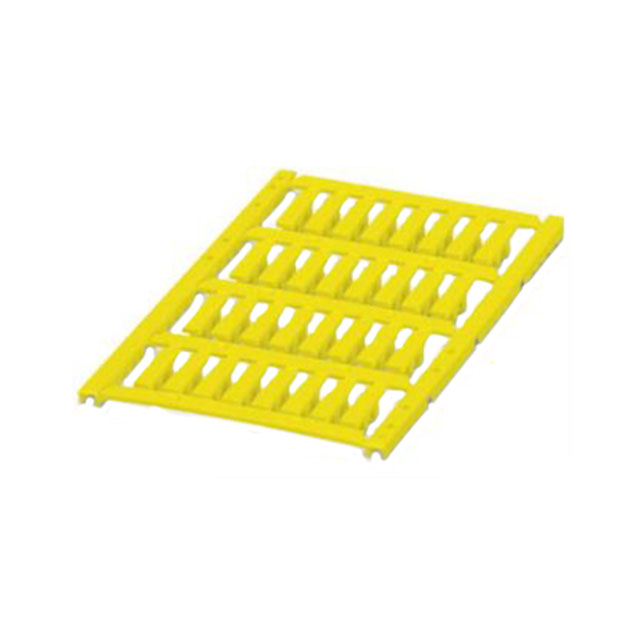

WIRE MARKER CLIP-ON 4MMX23MM YLW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0831205

Active

Phoenix Contact

WIRE MARKER CLIP-ON 4MMX23MM YLW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0831205

Cable Diameter [Max] [diameter]	2.9 mm
Cable Diameter [Max] [diameter]	0.114 in
Cable Diameter [Min] [diameter]	0.079 in
Cable Diameter [Min] [diameter]	2 mm
Color	Yellow
Legend	Blank
Material	Polycarbonate (PC)
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Size [x]	0.91 in, 23 mm
Size [y]	0.16 in, 4 mm
Type	Wire Marker, Clip-On

UCT-WMCO Series

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Type	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Legend	Material	Size [x]	Size [x]	Size [y]	Size [y]	Cable Diameter [Max] [diameter]
Phoenix Contact 0830786	White	-40 °C	120 °C	Wire Marker Cable Tie	4.1 mm	0.185 in	0.161 in	4.7 mm	Blank	Polycarbonate (PC)	0.16 "	4 mm	0.47 "	12 mm
Phoenix Contact 0830785	White	-40 °C	120 °C	Wire Marker Cable Tie	3.5 mm	0.161 in	0.138 in	4.1 mm	Blank	Polycarbonate (PC)	0.71 in	18 mm	0.16 in	4 mm
Phoenix Contact 0831209	Yellow	-40 °C	120 °C	Wire Marker Clip-On	3.5 mm	0.161 in	0.138 in	4.1 mm	Blank	Polycarbonate (PC)	0.71 in	18 mm	0.16 in	4 mm
Phoenix Contact 0832104	White	-40 °C	120 °C	Wire Marker Clip-On	4.1 mm	0.185 in	0.161 in	4.7 mm	Blank	Polycarbonate	0.91 in 23 mm		0.16 in 4 mm
Phoenix Contact 0830783	White	-40 °C	120 °C	Wire Marker Cable Tie	2.9 mm	0.138 in	0.114 in	3.5 mm	Blank	Polycarbonate (PC)	0.71 in	18 mm	0.16 in	4 mm
Phoenix Contact 0831205	Yellow	-40 °C	120 °C	Wire Marker Clip-On	2 mm	0.114 in	0.079 in	2.9 mm	Blank	Polycarbonate (PC)	0.91 in 23 mm		0.16 in 4 mm
Phoenix Contact 0831207	Yellow	-40 °C	120 °C	Wire Marker Clip-On	2.9 mm	0.138 in	0.114 in	3.5 mm	Blank	Polycarbonate (PC)	0.71 in	18 mm	0.16 in	4 mm
Phoenix Contact 0831206	Yellow	-40 °C	120 °C	Wire Marker Clip-On	2.9 mm	0.138 in	0.114 in	3.5 mm	Blank	Polycarbonate (PC)	0.16 "	4 mm	0.47 "	12 mm
Phoenix Contact 0831204	Yellow	-40 °C	120 °C	Wire Marker Clip-On	2 mm	0.114 in	0.079 in	2.9 mm	Blank	Polycarbonate (PC)	0.16 "	4 mm	0.47 "	12 mm
Phoenix Contact 0832100	White	-40 °C	120 °C	Wire Marker Clip-On	1.1 mm	0.075 in	0.043 in		Blank	Polycarbonate	0.91 in 23 mm		0.16 in 4 mm		1.9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	9	$ 9.95

Description

General part information

UCT-WMCO Series

Wire Marker, Clip-On 0.16" W x 0.91" L (4.0mm x 23.0mm) Yellow Polycarbonate (PC)
