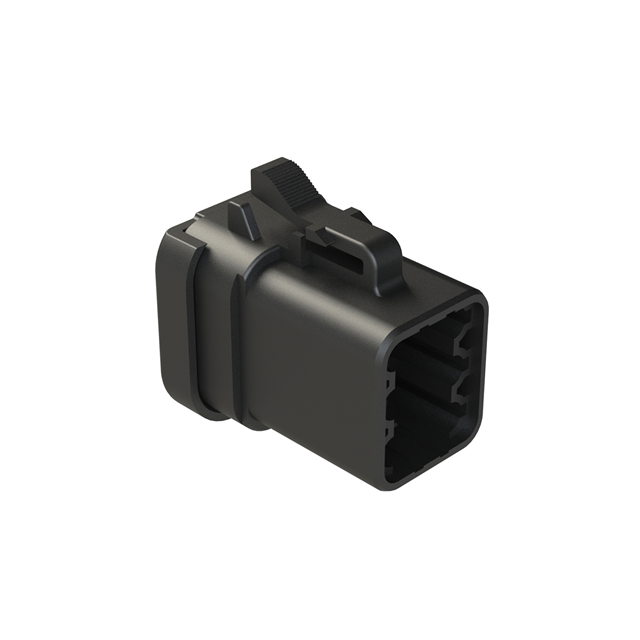

ATP06-6S-EC01BK

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 6POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsATP Series Datasheet +1

ATP06-6S-EC01BK

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 6POS

Deep-Dive with AI

DocumentsATP Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATP06-6S-EC01BK

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

ATP06-6S Series

Part	Contact Type	Contact Termination	Connector Type	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Features	Color	Mounting Type	Note	Number of Rows
Amphenol Sine Systems Corp ATP06-6S-BLK	Female Socket	Crimp	Plug	Latch Lock	6	-55 °C	125 °C	Thermoplastic	Sealed	Black	Free Hanging (In-Line)	Contacts Not Included	3
Amphenol Sine Systems Corp ATP06-6S-OMBLU	Female Socket	Crimp	Plug	Latch Lock	6	-55 °C	125 °C	Thermoplastic	Sealed	Blue	Free Hanging (In-Line)	Contacts Not Included	3
Amphenol Sine Systems Corp ATP06-6S-OMRDBLK	Female Socket	Crimp	Plug	Latch Lock	6	-55 °C	125 °C	Thermoplastic	Reduced Wire Seals Sealed	Black	Free Hanging (In-Line)	Contacts Not Included	3
Amphenol Sine Systems Corp ATP06-6S-OMWHT	Female Socket	Crimp	Plug	Latch Lock	6	-55 °C	125 °C	Thermoplastic	Sealed	White	Free Hanging (In-Line)	Contacts Not Included	3
Amphenol Sine Systems Corp ATP06-6S-OMYEL	Female Socket	Crimp	Plug	Latch Lock	6	-55 °C	125 °C	Thermoplastic	Sealed	Yellow	Free Hanging (In-Line)	Contacts Not Included	3
Amphenol Sine Systems Corp ATP06-6S-OMBLK	Female Socket	Crimp	Plug	Latch Lock	6	-55 °C	125 °C	Thermoplastic	Sealed	Black	Free Hanging (In-Line)	Contacts Not Included	3
Amphenol Sine Systems Corp ATP06-6S-OMBRN	Female Socket	Crimp	Plug	Latch Lock	6	-55 °C	125 °C	Thermoplastic	Sealed	Brown	Free Hanging (In-Line)	Contacts Not Included	3
Amphenol Sine Systems Corp ATP06-6S-EC01BK	Female Socket	Crimp	Plug	Latch Lock	6	-55 °C	125 °C	Thermoplastic	Sealed	Black	Free Hanging (In-Line)	Contacts Not Included	3
Amphenol Sine Systems Corp ATP06-6S-MM01	Female Socket	Crimp	Plug	Latch Lock	6	-55 °C	125 °C	Thermoplastic		Gray	Free Hanging (In-Line)	Contacts Not Included	3
Amphenol Sine Systems Corp ATP06-6S-OMRDGRY	Female Socket	Crimp	Plug	Latch Lock	6	-55 °C	125 °C	Thermoplastic	Sealed	Gray	Free Hanging (In-Line)	Contacts Not Included	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3.02
		10	$ 2.74
		25	$ 2.60
		50	$ 2.53
		100	$ 2.41
		450	$ 2.13

Description

General part information

ATP06-6S Series

6 Rectangular Connectors - Housings Plug Black

Documents

Technical documentation and resources

ATP Series

Datasheet

A Series Family

Datasheet
