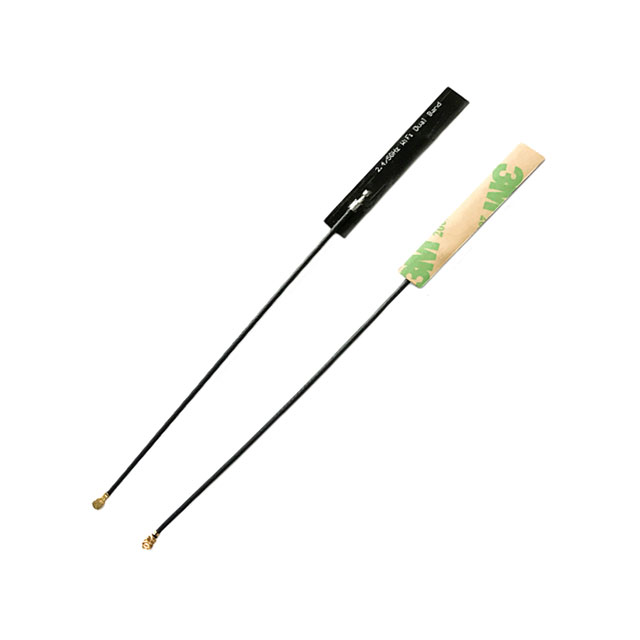

RPC-W2A8-W5B1-4507-O-X-001
ActiveRaltron Electronics
RF ANT 2.4GHZ PCB TRACE IPEX SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RPC-W2A8-W5B1-4507-O-X-001
ActiveRaltron Electronics
RF ANT 2.4GHZ PCB TRACE IPEX SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RPC-W2A8-W5B1-4507-O-X-001 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Wi-Fi |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 5.36 GHz, 2.44 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Gain | 3 dBi |
| Height (Max) | 0.3 mm |
| Height (Max) [Max] | 0.012 in |
| Ingress Protection | IP60 |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| RF Family/Standard | WiFi |
| Termination | IPEX |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.14 | |
| 10 | $ 5.59 | |||
| 25 | $ 4.93 | |||
| 100 | $ 4.19 | |||
| 250 | $ 3.83 | |||
| 500 | $ 3.61 | |||
| 1000 | $ 3.43 | |||
| 2500 | $ 3.29 | |||
Description
General part information
RPC-W2A8 Series
RF ANTENNA Wi-Fi PCB Trace IPEX Adhesive
