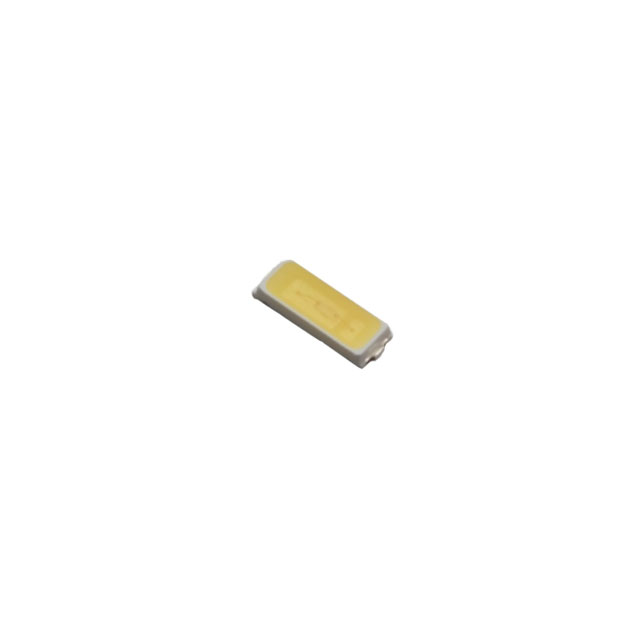

ASMD-FWG3-NPTG6
ActiveBroadcom Limited
LED COOL WHITE 6200K 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASMD-FWG3-NPTG6
ActiveBroadcom Limited
LED COOL WHITE 6200K 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMD-FWG3-NPTG6 |
|---|---|
| Color | Cool, White |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 90 mA |
| Current - Test | 60 mA |
| Flux @ 25°C, Current - Test | 25 lm |
| Flux @ 25°C, Current - Test [Max] | 30 lm |
| Flux @ 25°C, Current - Test [Min] | 20 lm |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Lumens/Watt @ Current - Test | 138 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 3014 Metric, 1206 |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 1.4 mm |
| Size / Dimension [y] | 0.055 in |
| Supplier Device Package | 2-SMD |
| Thermal Resistance of Package | 28 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.02 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 100000 | $ 0.08 | |
Description
General part information
ASMD-FWG3 Series
LED Lighting - White, Cool 6200K 3.02V 60mA 120° 1206 (3014 Metric)
