0263.125WRT1L
ActiveLittelfuse/Commercial Vehicle Products

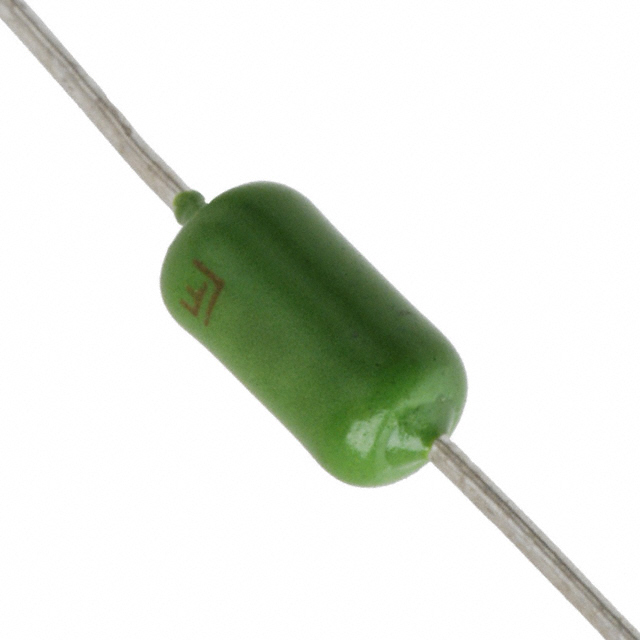

FUSE, PCB LEADED, 125 MA, 250 V, PICO II 263 SERIES, VERY FAST ACTING, AXIAL LEADED
Deep-Dive with AI
Search across all available documentation for this part.
0263.125WRT1L
ActiveLittelfuse/Commercial Vehicle Products
FUSE, PCB LEADED, 125 MA, 250 V, PICO II 263 SERIES, VERY FAST ACTING, AXIAL LEADED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0263.125WRT1L |
|---|---|
| Approval Agency | CSA, UR |
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 125 mA |
| DC Cold Resistance | 1.75 Ohms |
| Fuse Type | Board Mount |
| Melting I²t | 0.00251 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 0.155 in |
| Size / Dimension [diameter] | 3.94 mm |
| Size / Dimension [x] | 7.11 mm |
| Size / Dimension [x] | 0.28 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.73 | |
| 5 | $ 2.26 | |||
| 10 | $ 2.09 | |||
| 50 | $ 1.73 | |||
| 100 | $ 1.60 | |||
| 250 | $ 1.44 | |||
| 500 | $ 1.32 | |||
| 1000 | $ 1.22 | |||
| Tape & Reel (TR) | 3000 | $ 1.17 | ||
Description
General part information
0263.125 Series
The PICO® II 263 Series Fuse is a specially designed axial leaded fuse that achieves a 250V rating in a small package.
