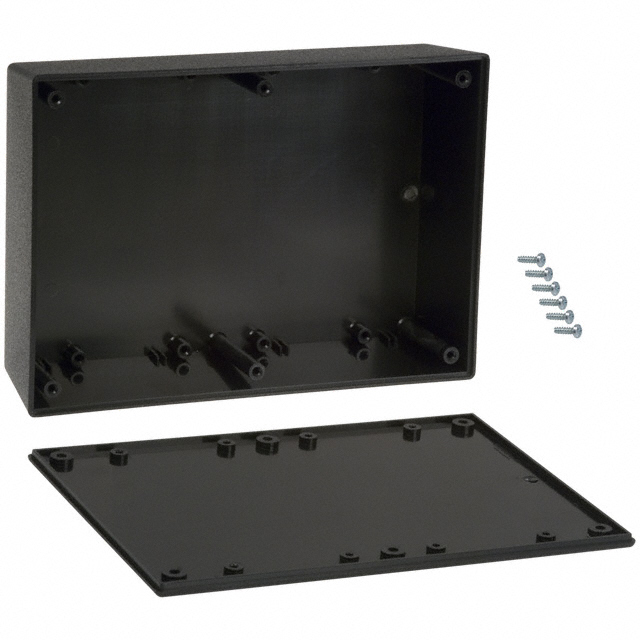

073,BK

Active

Serpac

BOX ABS BLACK 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	073,BK

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Black
Container Type	Box
Features	PCB Supports
Height [z]	48.26 mm
Height [z]	1.9 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	200.03 g
Weight	0.441 lb

Part	Ratings	Height [z]	Height [z]	Features	Material	Container Type	Area (L x W) [custom]	Area (L x W) [custom]	Material Flammability Rating	Design	Thickness	Thickness	Color	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W)	Area (L x W)
Serpac 073,GY	IP40 NEMA 1	48.26 mm	1.9 in	PCB Supports	Plastic ABS	Box	217 cm˛	33.6 in˛	UL94 HB	Cover Included Hand Held	2.54 mm	0.1 in	Gray	200.03 g	0.441 lb	123.95 mm	174.75 mm	4.88 in	6.88 in
Serpac 073,BK	IP40 NEMA 1	48.26 mm	1.9 in	PCB Supports	Plastic ABS	Box			UL94 HB		2.54 mm	0.1 in	Black	200.03 g	0.441 lb	123.95 mm	174.75 mm	4.88 in	6.88 in	33.6 in²	217 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black 6.880" L x 4.880" W (174.75mm x 123.95mm) X 1.900" (48.26mm)
