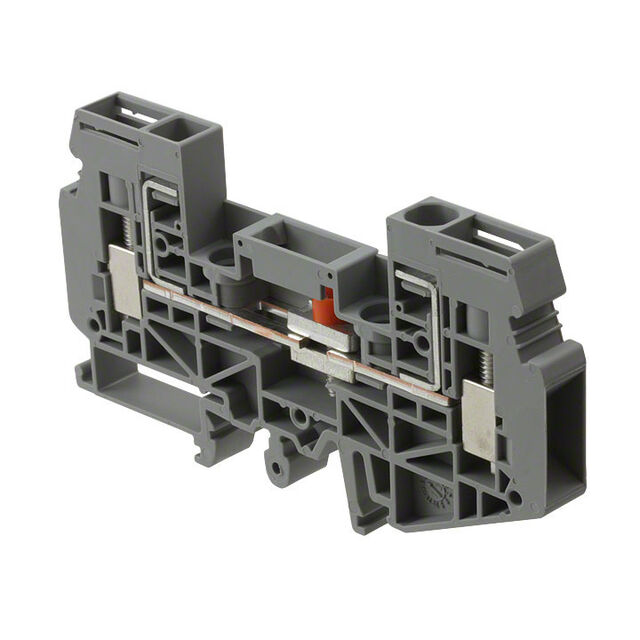

3026272

Active

Phoenix Contact

CONN TERM BLK DISCONNECT 8-26AWG

Search across all available documentation for this part.

Active

Phoenix Contact

CONN TERM BLK DISCONNECT 8-26AWG

Technical Specifications

Parameters and characteristics for this part

Specification	3026272

Color	Gray
Current - IEC	41 A
Current - UL	50 A
Disconnect Type	Switch, Slide
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	2
Stripping Length	10 mm
Terminal - Width [y]	8.2 mm
Termination Style	Screw
Type	Disconnect
Voltage - IEC	400 V
Voltage - UL [custom]	300 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	8 AWG
Wire Gauge or Range - mm² [Max]	10 mm²
Wire Gauge or Range - mm² [Min]	0.5 mm²

DIN Rail Terminal Blocks URTK 6

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Material Flammability Rating	Voltage - IEC	Color	Type	Voltage - UL [custom]	Current - UL	Terminal - Width [y]	Number of Positions	Current - IEC	Stripping Length	Number of Levels	Disconnect Type	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Termination Style	Material - Insulation
Phoenix Contact 3026272	26 AWG	8 AWG	UL94 V-0	400 V	Gray	Disconnect	300 V	50 A	8.2 mm	2	41 A	10 mm	1	Slide Switch	10 mm²	0.5 mm²	Screw	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DIN Rail Terminal Blocks URTK 6
