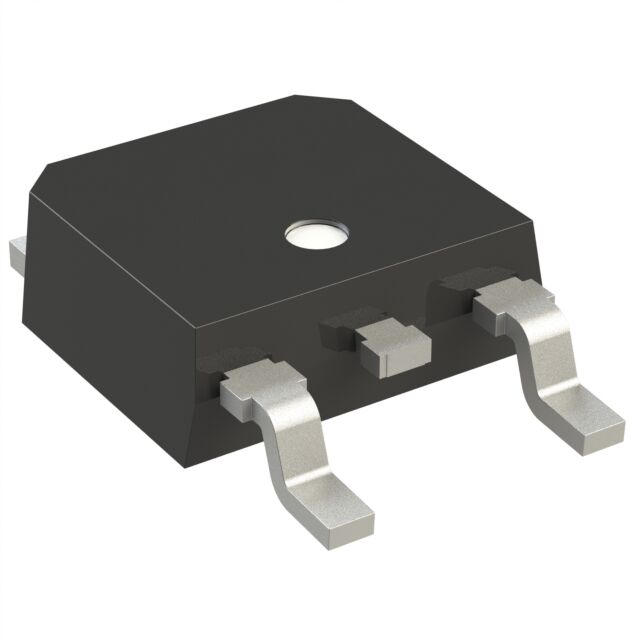

2SAR583D3FRATL

Active
Rohm Semiconductor

PNP, TO-252 (DPAK), -50V -7A, POWER TRANSISTOR FOR AUTOMOTIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAbout Flammability of MaterialsNotes for Temperature Measurement Using Thermocouples+27
2SAR583D3FRATL - BA17818FP-E2

2SAR583D3FRATL

Active
Rohm Semiconductor

PNP, TO-252 (DPAK), -50V -7A, POWER TRANSISTOR FOR AUTOMOTIVE

Deep-Dive with AI

DocumentsAbout Flammability of MaterialsNotes for Temperature Measurement Using Thermocouples+27

Technical Specifications

Parameters and characteristics for this part

Specification2SAR583D3FRATL
Current - Collector (Ic) (Max) [Max]7 A
Current - Collector Cutoff (Max) [Max]1 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]180
Frequency - Transition230 MHz
GradeAutomotive
Mounting TypeSurface Mount
Operating Temperature150 °C
Package / CaseSC-63, DPAK (2 Leads + Tab), TO-252-3
Power - Max [Max]10 W
QualificationAEC-Q101
Supplier Device PackageTO-252
Transistor TypePNP
Vce Saturation (Max) @ Ib, Ic400 mV
Voltage - Collector Emitter Breakdown (Max) [Max]50 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 3.33
10$ 2.17
100$ 1.51
500$ 1.22
1000$ 1.13
Digi-Reel® 1$ 3.33
10$ 2.17
100$ 1.51
500$ 1.22
1000$ 1.13
Tape & Reel (TR) 2500$ 1.05
NewarkEach (Supplied on Cut Tape) 1$ 3.75
10$ 2.68
25$ 2.45
50$ 2.22
100$ 1.99
250$ 1.85
500$ 1.70
1000$ 1.61

Description

General part information

2SAR583D3FRA Series

2SAR583D3 is a power transistor with Low VCE(sat), suitable for low frequency amplifier. It is a highly reliable product for automotive.
