TE300B180RJ

Active

TE Connectivity Passive Product

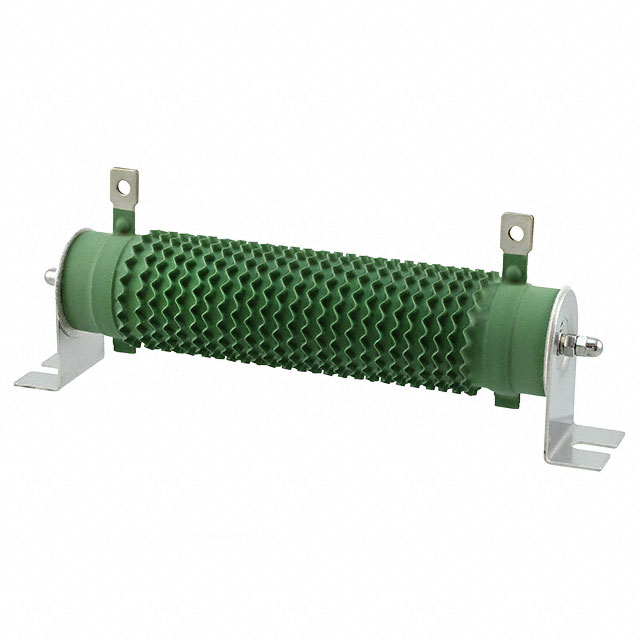

RES CHAS MNT 180 OHM 5% 300W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TE300B180RJ

Active

TE Connectivity Passive Product

RES CHAS MNT 180 OHM 5% 300W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TE300B180RJ

Coating, Housing Type	Silicone Coated
Composition	Wirewound
Features	Flame Proof, Safety
Lead Style	Solder Lugs
Mounting Feature	Brackets
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Tubular
Power (Watts)	300 W
Resistance	180 Ohms
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Size / Dimension [x]	11.102 in
Size / Dimension [x]	282 mm
Temperature Coefficient	440 ppm/°C
Tolerance	5 %

TE300 Series

Part	Package / Case	Features	Power (Watts)	Tolerance	Temperature Coefficient	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Lead Style	Mounting Feature	Resistance	Coating, Housing Type
TE Connectivity Passive Product TE300B5R6J	Radial Tubular	Flame Proof Safety	300 W	5 %	440 ppm/°C	Wirewound	155 °C	-55 °C	11.102 in	1.575 "	282 mm	40 mm	Solder Lugs	Brackets	5.6 Ohms	Silicone Coated
TE Connectivity Passive Product TE300B560RJ	Radial Tubular	Flame Proof Safety	300 W	5 %	440 ppm/°C	Wirewound	155 °C	-55 °C	11.102 in	1.575 "	282 mm	40 mm	Solder Lugs	Brackets	560 Ohms	Silicone Coated
TE Connectivity Passive Product TE300B1K8J	Radial Tubular	Flame Proof Safety	300 W	5 %	440 ppm/°C	Wirewound	155 °C	-55 °C	11.102 in	1.575 "	282 mm	40 mm	Solder Lugs	Brackets	1.8 kOhms	Silicone Coated
TE Connectivity Passive Product TE300B18RJ	Radial Tubular	Flame Proof Safety	300 W	5 %	440 ppm/°C	Wirewound	155 °C	-55 °C	11.102 in	1.575 "	282 mm	40 mm	Solder Lugs	Brackets	18 Ohms	Silicone Coated
TE Connectivity Passive Product TE300B1R5J	Radial Tubular	Flame Proof Safety	300 W	5 %	440 ppm/°C	Wirewound	155 °C	-55 °C	11.102 in	1.575 "	282 mm	40 mm	Solder Lugs	Brackets		Silicone Coated
TE Connectivity Passive Product TE300B180RJ	Radial Tubular	Flame Proof Safety	300 W	5 %	440 ppm/°C	Wirewound	155 °C	-55 °C	11.102 in	1.575 "	282 mm	40 mm	Solder Lugs	Brackets	180 Ohms	Silicone Coated
TE Connectivity Passive Product TE300B1K5J	Radial Tubular	Flame Proof Safety	300 W	5 %	440 ppm/°C	Wirewound	155 °C	-55 °C	11.102 in	1.575 "	282 mm	40 mm	Solder Lugs	Brackets	1500 Ohms	Silicone Coated
TE Connectivity Passive Product TE300B680RJ	Radial Tubular	Flame Proof Safety	300 W	5 %	440 ppm/°C	Wirewound	155 °C	-55 °C	11.102 in	1.575 "	282 mm	40 mm	Solder Lugs	Brackets	680 Ohms	Silicone Coated
TE Connectivity Passive Product TE300B2R7J	Radial Tubular	Flame Proof Safety	300 W	5 %	440 ppm/°C	Wirewound	155 °C	-55 °C	11.102 in	1.575 "	282 mm	40 mm	Solder Lugs	Brackets	2.7 Ohms	Silicone Coated
TE Connectivity Passive Product TE300B39RJ	Radial Tubular	Flame Proof Safety	300 W	5 %	440 ppm/°C	Wirewound	155 °C	-55 °C	11.102 in	1.575 "	282 mm	40 mm	Solder Lugs	Brackets	39 Ohms	Silicone Coated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 39.68

Description

General part information

TE300 Series

180 Ohms ±5% 300W Wirewound Chassis Mount Resistor
