FA1-NISJ-C04-0

Active

Amphenol RF

CONN FAKRA JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN FAKRA JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NISJ-C04-0

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Latch Lock
Features	Code I
Frequency - Max [Max]	4 GHz
Housing Color	Beige
Impedance	50 Ohms

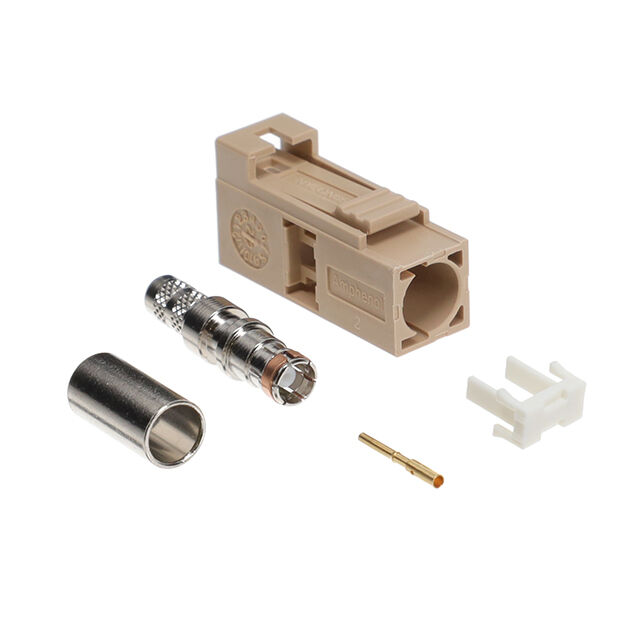

Includes	1 Housing, 1 Contact, 1 Ferrule, 1 Connector, 1 Locking Clip
Insertion Loss	0.3 dB
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Dielectric Material	Fastening Type	Features	Contact Termination	Body Material	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insertion Loss	Includes	Shield Termination	Mounting Type	Frequency - Max [Max]	Number of Ports	Cable Group	Body Finish	Center Contact Material	Housing Color	Connector Style	Center Contact Plating
Amphenol RF FA1-NISJ-C04-0	Polytetrafluoroethylene (PTFE)	Latch Lock	Code I	Crimp	Brass	50 Ohms	-40 °C	115 °C	Female Socket Jack	0.3 dB	1 Connector 1 Contact 1 Ferrule 1 Housing 1 Locking Clip	Crimp	Free Hanging (In-Line)	4 GHz	1	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Nickel	Beryllium Copper	Beige	Fakra SMB	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
