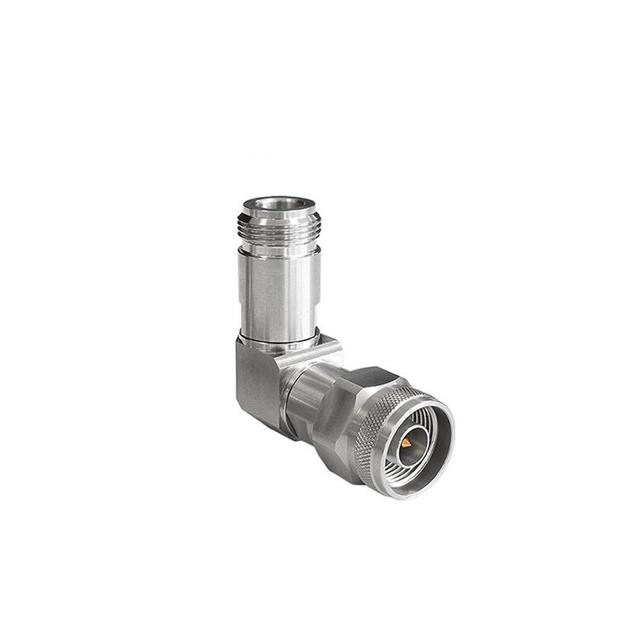

RFABNPNP

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, INTRA SERIES COAXIAL, 50 OHM

Search across all available documentation for this part.

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, INTRA SERIES COAXIAL, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	RFABNPNP

Adapter Series	N to N
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Right Angle

Part	Mating Cycles	Style	Center Contact Material	Frequency - Max [Max]	Adapter Type	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Convert To (Adapter End)	Adapter Series	Dielectric Material	Mounting Type	Convert From (Adapter End)	Conversion Type	Body Material	Center Gender
BULGIN LIMITED RFABNJNP	500	Right Angle	Beryllium Copper	18 GHz	Plug to Jack	50 Ohms	85 °C	-40 °C	Male Pin N Plug	N to N	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Female Socket N Jack	Same Series	Stainless Steel
BULGIN LIMITED RFABNJNJ	500	Right Angle	Beryllium Copper	18 GHz	Jack to Jack	50 Ohms	85 °C	-40 °C	Female Socket N Jack	N to N	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Female Socket N Jack	Same Series	Stainless Steel	Female to Female
BULGIN LIMITED RFABNPNP	500	Right Angle	Beryllium Copper	18 GHz	Plug to Plug	50 Ohms	85 °C	-40 °C	Male Pin N Plug	N to N	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	N Plug Male Pin	Same Series	Stainless Steel	Male to Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 176.68
Newark	Each	1	$ 277.97

General part information

Adapter Coaxial Connector N Plug, Male Pin To N Plug, Male Pin 50 Ohms
