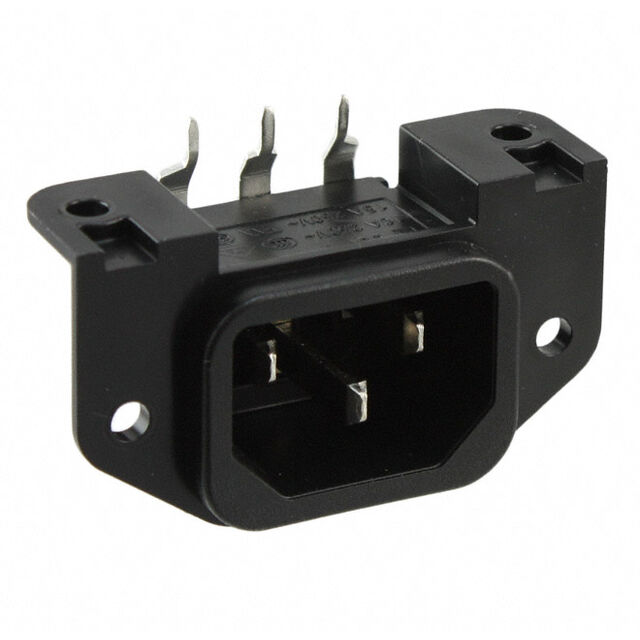

GSP1.810C.1

Active

SCHURTER Inc.

IEC APPLIANCE INLET C14 OR C18, SCREW-ON MOUNTING, REAR SIDE, PCB- OR SOLDER TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GSP1.810C.1

Active

SCHURTER Inc.

IEC APPLIANCE INLET C14 OR C18, SCREW-ON MOUNTING, REAR SIDE, PCB- OR SOLDER TERMINAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GSP1.810C.1

Approval Agency	ENEC, CCC, cURus
Connector Type	Male Blades, Receptacle
Current Rating (Amps)	15 A
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.3 mm
Panel Cutout Dimensions [y]	22.5 mm
Panel Thickness	3 mm
Panel Thickness	0.118 in
Voltage Rating	250 VAC

GSP1.810C Series

Part	Mounting Type	Current Rating - Appliance Inlet	Approval Agency	Connector Type	Ingress Protection	Filter Type	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Material Flammability Rating	Connector Style	Number of Positions	Panel Thickness	Panel Thickness	Termination	Features	Current Rating (Amps)	Voltage Rating
SCHURTER Inc. GSP1.8100.1	Panel Mount Flange Through Hole Right Angle	10 A	CCC cURus ENEC	Male Blades Receptacle	IP40	Unfiltered - Commercial	250 VAC	30.3 mm	22.5 mm	UL94 V-0	IEC 320-C18	2	3 mm	0.118 in	Solder
SCHURTER Inc. GSP1.8111.1	Panel Mount Flange Through Hole Right Angle	10 A	CCC cURus ENEC	Male Blades Receptacle	IP40	Unfiltered - Commercial	250 VAC	30.3 mm	22.5 mm	UL94 V-0	IEC 320-C14		3 mm	0.118 in	Solder	Terminating Cover
SCHURTER Inc. GSP1.810C.1	Panel Mount Flange Through Hole Right Angle		CCC cURus ENEC	Male Blades Receptacle	IP40			30.3 mm	22.5 mm	UL94 V-0			3 mm	0.118 in			15 A	250 VAC
SCHURTER Inc. GSP1.8211.1	Panel Mount Flange Through Hole Right Angle	10 A	CCC cURus ENEC	Male Blades Receptacle	IP40	Unfiltered - Commercial	250 VAC	30.3 mm	22.5 mm	UL94 V-0	IEC 320-C14		3 mm	0.118 in	Solder	Terminating Cover
SCHURTER Inc. GSP1.8701.1	Panel Mount Flange Through Hole Right Angle	10 A	CCC cURus ENEC	Male Blades Receptacle	IP40	Unfiltered - Commercial	250 VAC	30.3 mm	22.5 mm	UL94 V-0	IEC 320-C14		3 mm	0.118 in	Solder
SCHURTER Inc. GSP1.8601.1	Panel Mount Flange Through Hole Right Angle	10 A	CCC cURus ENEC	Male Blades Receptacle	IP40	Unfiltered - Commercial	250 VAC	30.3 mm	22.5 mm	UL94 V-0	IEC 320-C14		3 mm	0.118 in	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.46
		50	$ 1.87
		100	$ 1.36
		500	$ 1.15
TME	N/A	1	$ 1.78
		5	$ 1.60
		20	$ 1.43
		50	$ 1.25

Description

General part information

GSP1.810C Series

Power Connector Receptacle, Male Blades Panel Mount, Flange; Through Hole, Right Angle
