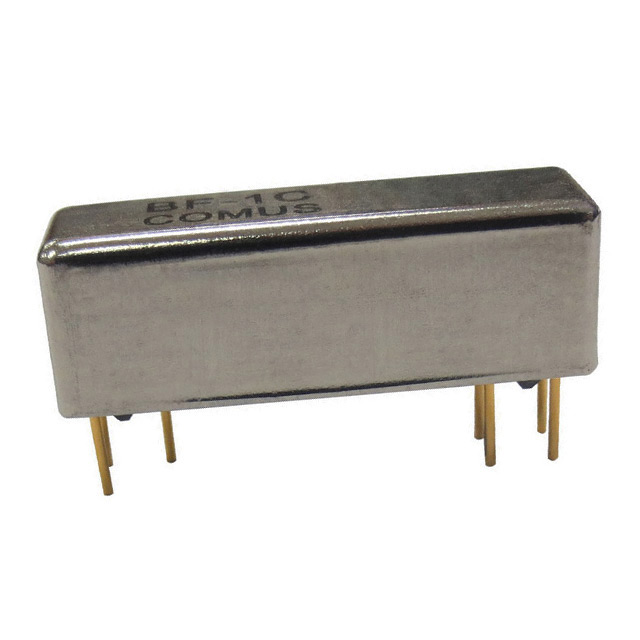

BF-1C-05
ActiveComus International
RELAY REED SPDT .25A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BF-1C-05
ActiveComus International
RELAY REED SPDT .25A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BF-1C-05 |
|---|---|
| Coil Current | 21.7 mA |
| Coil Resistance | 230 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Ruthenium (Ru) |
| Contact Rating (Current) | 250 mA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.8 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 1 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Release Time | 2 ms |
| Switching Voltage | 150 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 9.88 | |
| 10 | $ 8.80 | |||
| 25 | $ 8.40 | |||
| 50 | $ 8.12 | |||
| 100 | $ 7.84 | |||
| 300 | $ 7.41 | |||
| 500 | $ 7.23 | |||
| 1000 | $ 6.98 | |||
Description
General part information
BF-1 Series
RELAY REED SPDT .25A 5V
