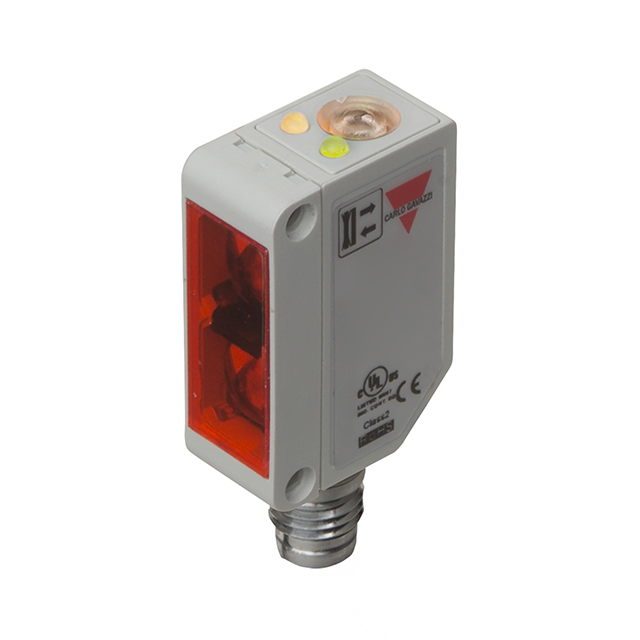

PD30CND10NPM5DU
ObsoleteCARLO GAVAZZI
SENSOR REFLECTIVE 1M NPN NO/NC
Deep-Dive with AI
Search across all available documentation for this part.
PD30CND10NPM5DU
ObsoleteCARLO GAVAZZI
SENSOR REFLECTIVE 1M NPN NO/NC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PD30CND10NPM5DU |
|---|---|
| Adjustment Type | Teaching Method |
| Connection Method | Connector |
| Ingress Protection | IP67 |
| Light Source | Red (660nm) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | NPN |
| Response Time | 500 µs |
| Sensing Distance | 39.37 in |
| Sensing Distance | 1 m |
| Sensing Method | Reflective, Diffuse |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 96.90 | |
| 10 | $ 82.13 | |||
Description
General part information
PD30CND10 Series
Reflective, Diffuse Optical Sensor 39.370" (1m) NPN
Documents
Technical documentation and resources
No documents available
