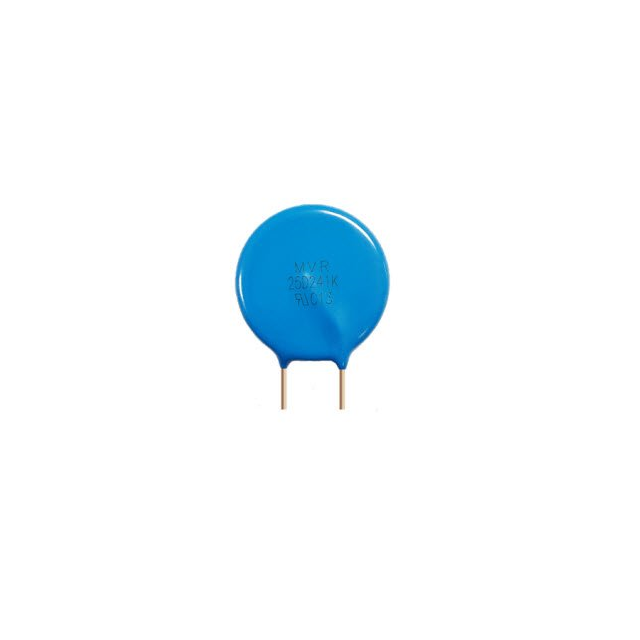

MVR14D221K

Active

Meritek

VARISTOR 220V 4500A 14MM DISC TH

Search across all available documentation for this part.

Active

Meritek

VARISTOR 220V 4500A 14MM DISC TH

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Energy	Number of Circuits	Varistor Voltage (Max) [Max]	Package / Case	Package / Case	Varistor Voltage (Typ)	Current - Surge	Maximum DC Volts [Max]	Varistor Voltage (Min) [Min]	Capacitance @ Frequency	Maximum AC Volts [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Maximum AC Volts
Meritek MVR14D431K	Through Hole	115 J	1	473 V	14 mm	Disc	430 V	4.5 kA	350 V	387 V	460 pF	275 V	-40 °C	105 ░C
Meritek MVR14D681K-S	Through Hole	200 J	1	748 V	14 mm	Disc	680 V	6 kA	560 V	621 V	290 pF	420 V	-40 °C	105 ░C	High Surge
Meritek MVR14D511K	Through Hole	125 J	1	561 V	14 mm	Disc	510 V	4.5 kA	415 V	459 V	390 pF	320 V	-40 °C	105 ░C
Meritek MVR14D102K	Through Hole	190 J	1	1.1 kV	14 mm	Disc	1 kV	4.5 kA	825 V	900 V	200 pF	625 V	-40 °C	105 ░C
Meritek MVR14D241K	Through Hole	63 J	1	264 V	14 mm	Disc	240 V	4.5 kA	200 V	216 V	830 pF	150 V	-40 °C	105 ░C
Meritek MVR14D820K	Through Hole	22 J	1	90 V	14 mm	Disc	82 V	4.5 kA	65 V	74 V	2400 pF	50 V	-40 °C	105 ░C
Meritek MVR14D391K	Through Hole	100 J	1	429 V	14 mm	Disc	390 V	4.5 kA	320 V	351 V	510 pF	250 V	-40 °C	105 ░C
Meritek MVR14D221K	Through Hole	60 J	1	242 V	14 mm	Disc	220 V	4.5 kA	180 V	198 V	900 pF	140 V	-40 °C	105 ░C
Meritek MVR14D471K-S	Through Hole	175 J	1	517 V	14 mm	Disc	470 V	6 kA	385 V	423 V	430 pF		-40 °C	105 ░C	High Surge	300 V
Meritek MVR14D390K	Through Hole	8.6 J	1	43 V	14 mm	Disc	39 V	1 kA	31 V	35 V	5100 pF	25 V	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 V 4.5 kA Varistor 1 Circuit Through Hole Disc 14mm
