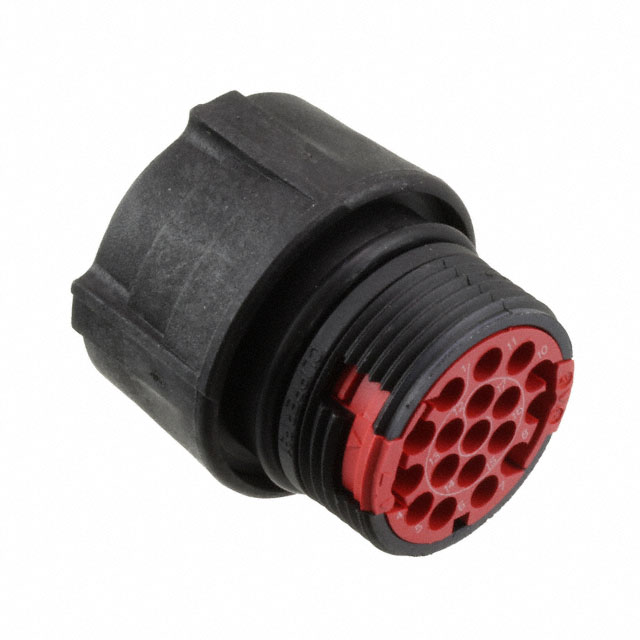

CL1P3101

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG MALE 18POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CL1P3101

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG MALE 18POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CL1P3101

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp and Solder Cup
Fastening Type	Twist Latch
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	18
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Thermoplastic, Halogen Free
Shell Size - Insert	3-1
Shielding	Unshielded
Type	For Male Pins

CL1P Series

Part	Ingress Protection	Contact Type	Type	Contact Shape	Fastening Type	Number of Positions	Contact Size	Orientation	Connector Type	Housing Color	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Features	Shell Material	Note	Shielding	Mounting Type	Material Flammability Rating	Shell Size - Insert	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Souriau-Sunbank by Eaton CL1P2101	IP67 - Dust Tight Waterproof	Crimp and Solder Cup	For Male Pins	Circular	Twist Latch	9	16	Keyed	Plug Housing	Black	Thermoplastic	125 °C	-40 °C	Coupling Nut	Thermoplastic Halogen Free	Contacts Not Included	Unshielded	Free Hanging (In-Line)	UL94 V-0
Souriau-Sunbank by Eaton CL1P3100	IP40	Crimp and Solder Cup	For Male Pins	Circular	Twist Latch	18	16	Keyed	Plug Housing	Black	Thermoplastic	125 °C	-40 °C	Coupling Nut	Thermoplastic Halogen Free	Contacts Not Included	Unshielded	Free Hanging (In-Line)	UL94 V-0	3-1
Souriau-Sunbank by Eaton CL1P3101	IP67 - Dust Tight Waterproof	Crimp and Solder Cup	For Male Pins	Circular	Twist Latch	18	16	Keyed	Plug Housing	Black	Thermoplastic	125 °C	-40 °C	Coupling Nut	Thermoplastic Halogen Free	Contacts Not Included	Unshielded	Free Hanging (In-Line)	UL94 V-0	3-1
Souriau-Sunbank by Eaton CL1P1100	IP40	Crimp and Solder Cup	For Male Pins	Circular	Twist Latch	4	16	Keyed	Plug Housing	Black	Thermoplastic	125 °C	-40 °C	Coupling Nut	Thermoplastic Halogen Free	Contacts Not Included	Unshielded	Free Hanging (In-Line)	UL94 V-0	1-1
Souriau-Sunbank by Eaton CL1P4200	IP40	Crimp and Solder Cup	For Male Pins	Circular	Twist Latch	40	16	Keyed	Plug Housing	Black	Thermoplastic	125 °C	-40 °C	Coupling Nut	Thermoplastic Halogen Free	Contacts Not Included	Unshielded	Free Hanging (In-Line)	UL94 V-0		2	4
Souriau-Sunbank by Eaton CL1P1101	IP67 - Dust Tight Waterproof	Crimp and Solder Cup	For Male Pins	Circular	Twist Latch	4	16	Keyed	Plug Housing	Black	Thermoplastic	125 °C	-40 °C	Coupling Nut	Thermoplastic Halogen Free	Contacts Not Included	Unshielded	Free Hanging (In-Line)	UL94 V-0	1-1
Souriau-Sunbank by Eaton CL1P2100	IP40	Crimp and Solder Cup	For Male Pins	Circular	Twist Latch	9	16	Keyed	Plug Housing	Black	Thermoplastic	125 °C	-40 °C	Coupling Nut	Thermoplastic Halogen Free	Contacts Not Included	Unshielded	Free Hanging (In-Line)	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.11
		10	$ 12.41
		25	$ 11.29

Description

General part information

CL1P Series

18 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
