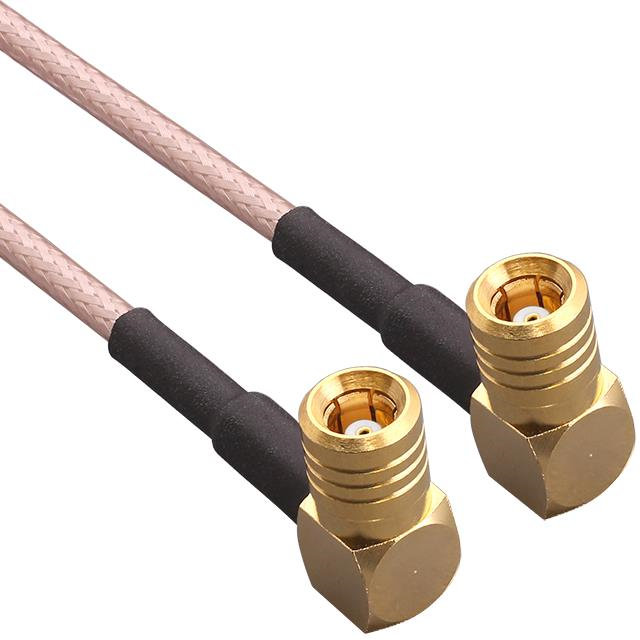

CSE-SBRM-610-SBRM
ActiveTE Connectivity Linx
COAX CBL SMB TO SMB 24"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSE-SBRM-610-SBRM |
|---|---|
| 1st Connector | Right Angle, SMB Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMB Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Frequency - Max [Max] | 4 GHz |
| Length | 24 " |
| Length | 609.6 mm |
| Operating Temperature | 105 C |
| Overall Impedance | 50 Ohms |
| Style | SMB to SMB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.54 | |
| 250 | $ 14.14 | |||
| 500 | $ 13.53 | |||
Description
General part information
CSE-SBRM Series
Cable Assembly Coaxial SMB to SMB RG-316 24.00" (609.60mm)
