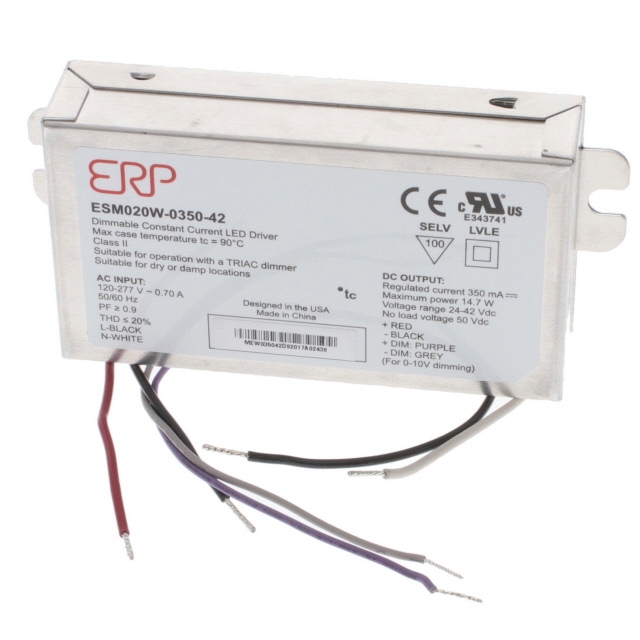

ESM020W-0350-42

Active

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 350MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESM020W-0350-42

Active

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 350MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESM020W-0350-42

Approval Agency	CB, cUL, FC, UL, CE, cRUcs
Current - Output (Max) [Max]	350 mA
Dimming	ELV, TRIAC
Efficiency	87 %
Features	OTP, SCP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Power (Watts)	15 W
Ratings	NEMA 410, IP20
Size / Dimension [x]	106.7 mm, 4.2 in
Size / Dimension [y]	60.3 mm, 2.37 in
Size / Dimension [z]	0.99 in, 25.2 mm
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	277 VAC
Voltage - Input (Min) [Min]	120 VAC
Voltage - Output [Max]	42 V
Voltage - Output [Min]	28 V
Weight	252 g
Weight	0.556 lb

ESM020W Series

Part	Number of Outputs	Approval Agency	Weight	Weight	Voltage - Output [Min]	Voltage - Output [Max]	Power (Watts)	Type	Topology	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Efficiency	Voltage - Input (Max) [Max]	Ratings	Current - Output (Max) [Max]	Dimming	Operating Temperature	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
ERP Power, LLC ESM020W-0350-42	1	CB CE cRUcs cUL FC UL	252 g	0.556 lb	28 V	42 V	15 W	Constant Current	AC DC Converter	120 VAC	0.99 in 25.2 mm	4.2 in 106.7 mm	2.37 in 60.3 mm	OCP OTP SCP	Chassis Mount	-30 ░C	90 °C	Wire Leads	87 %	277 VAC	IP20 NEMA 410	350 mA	ELV TRIAC
ERP Power, LLC ESM020W-1000-14	1	CB CE cRUcs cUL FC UL	252 g	0.556 lb	8 V	14 V	14 Watts	Constant Current	AC DC Converter	120 VAC	0.99 in 25.2 mm	4.2 in 106.7 mm	2.37 in 60.3 mm	OCP OTP SCP	Chassis Mount	-30 ░C	90 °C	Wire Leads	87 %	277 VAC	IP20 IP64 NEMA 410	1 A	ELV TRIAC
ERP Power, LLC ESM020W-0280-42	1	CB CE cRUcs cUL FC UL	252 g	0.556 lb	28 V	42 V	12 W	Constant Current	AC DC Converter	120 VAC	0.99 in 25.2 mm	4.2 in 106.7 mm	2.37 in 60.3 mm	OCP OTP SCP	Chassis Mount	-30 ░C	90 °C	Wire Leads	87 %	277 VAC	IP20 NEMA 410	280 mA	ELV TRIAC
ERP Power, LLC ESM020W-0350-42-Z1	1				24 V	42 V	15 W	Constant Current	AC DC Converter	120 VAC	25.1 mm	106.4 mm	60.2 mm	OCP OTP SCP	Chassis Mount			Wire Leads	87 %	277 VAC	IP20	350 mA	Analog ELV TRIAC	194 °F	4.19 "	2.37 in	0.99 "
ERP Power, LLC ESM020W-0440-34	1	CB CE cRUcs cUL FC UL	252 g	0.556 lb	19 V	34 V	15 W	Constant Current	AC DC Converter	120 VAC	0.99 in 25.2 mm	4.2 in 106.7 mm	2.37 in 60.3 mm	OCP OTP SCP	Chassis Mount	-30 ░C	90 °C	Wire Leads	87 %	277 VAC	IP20 NEMA 410	440 mA	ELV TRIAC
ERP Power, LLC ESM020W-0400-42	1	CB CE cRUcs FC			28 V	42 V	17 W	Constant Current	AC DC Converter	120 VAC	25.1 mm	106.4 mm	60.2 mm	OCP OTP SCP	Chassis Mount			Wire Leads	87 %	277 VAC	IP20	440 mA	ELV TRIAC		4.19 "	2.37 in	0.99 "
ERP Power, LLC ESM020W-0440-25	1	CB CE cRUcs cUL FC UL	252 g	0.556 lb	19 V	25 V	11 W	Constant Current	AC DC Converter	120 VAC	0.99 in 25.2 mm	4.2 in 106.7 mm	2.37 in 60.3 mm	OCP OTP SCP	Chassis Mount	-30 ░C	90 °C	Wire Leads	87 %	277 VAC	IP20 IP64 NEMA 410	440 mA	ELV TRIAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 29.84
		5	$ 28.27
		10	$ 26.70
		25	$ 25.52
		50	$ 24.34
		100	$ 23.56
		250	$ 21.60

Description

General part information

ESM020W Series

350mA 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output

Documents

Technical documentation and resources
