74AVC16T245EV/G518

Active

Freescale Semiconductor - NXP

BUS TRANSCEIVER, AVC SERIES

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

BUS TRANSCEIVER, AVC SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	74AVC16T245EV/G518

Current - Output High, Low [custom]	12 mA
Current - Output High, Low [custom]	12 mA
Logic Type	Translation Transceiver
Mounting Type	Surface Mount
Number of Bits per Element	8
Number of Elements	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	3-State

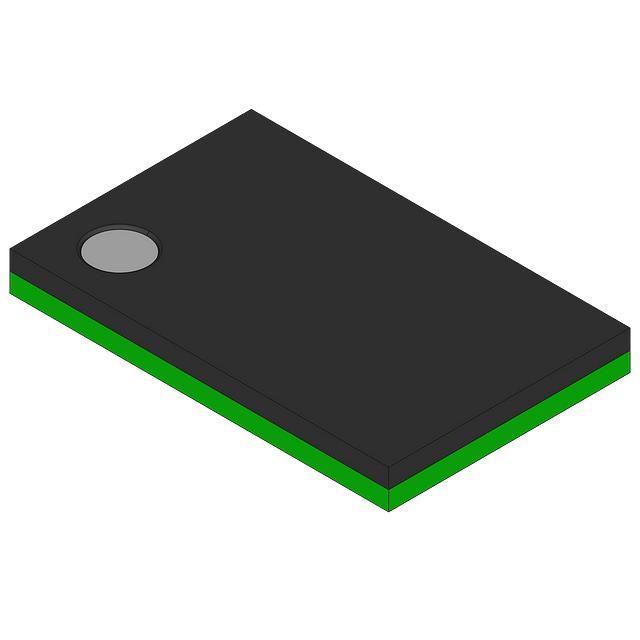

Package / Case	56-VFBGA
Supplier Device Package	56-VFBGA (4.5x7)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	0.8 V

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Supplier Device Package	Output Type	Number of Bits per Element	Logic Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Elements	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Package / Case [custom]
Freescale Semiconductor - NXP 74AVC16T245BQ,518	Surface Mount	-40 °C	125 °C	60-UFQFN Dual Rows Exposed Pad	60-HUQFNU (4x6)	3-State	8	Translation Transceiver	0.8 V	3.6 V	2	12 mA	12 mA
Freescale Semiconductor - NXP 74AVC16T245EV/G518	Surface Mount	-40 °C	125 °C	56-VFBGA	56-VFBGA (4.5x7)	3-State	8	Translation Transceiver	0.8 V	3.6 V	2	12 mA	12 mA
Freescale Semiconductor - NXP 74AVC16T245DGG,118	Surface Mount	-40 °C	125 °C	48-TFSOP	48-TSSOP	3-State	8	Translation Transceiver	0.8 V	3.6 V	2	12 mA	12 mA	0.24 in	6.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Translation Transceiver 2 Element 8 Bit per Element 3-State Output 56-VFBGA (4.5x7)
