19628101420

Active

HARTING Technology Group

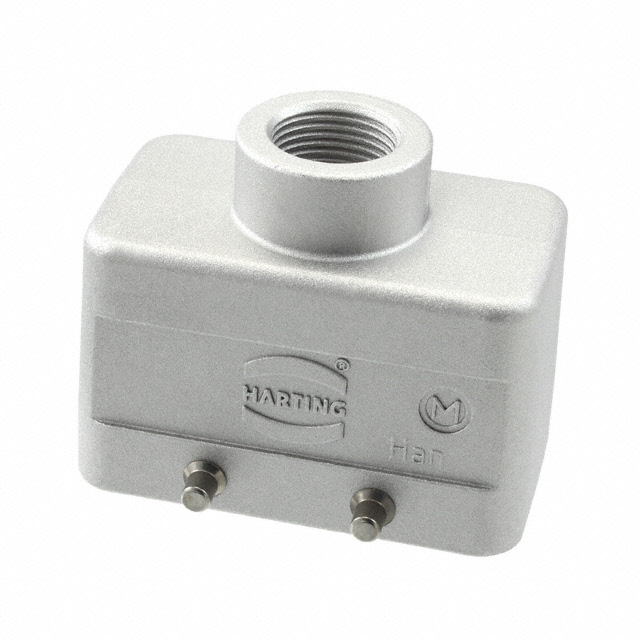

10B EMC HOOD TOP ENTRY, DOUBLE LEVER, LOW CONSTRUCTION, M20 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

HARTING Technology Group

10B EMC HOOD TOP ENTRY, DOUBLE LEVER, LOW CONSTRUCTION, M20 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	19628101420

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	72.6 mm
Size / Dimension [x]	2.858 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	1.772 in
Size / Dimension [z]	45 mm
Style	Top Entry
Thread Size	M20

Part	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Connector Type	Style	Housing Material	Thread Size	Ingress Protection	Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19628101420	125 °C	-40 °C	Locking Clip (2) on Base Bottom	Hood	Top Entry	Aluminum Die Cast	M20	IP65 - Dust Tight Water Resistant	10B	43 mm	72.6 mm	2.858 "	1.772 in	1.693 in	45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M20 10B IP65 - Dust Tight, Water Resistant
