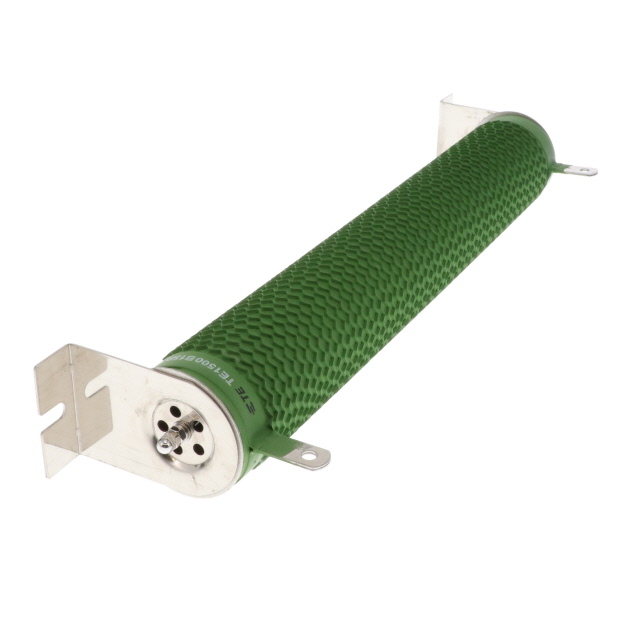

TE1500B15RJ

Active

TE Connectivity Passive Product

RES CHAS MNT 15 OHM 5% 1500W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TE1500B15RJ

Active

TE Connectivity Passive Product

RES CHAS MNT 15 OHM 5% 1500W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TE1500B15RJ

Coating, Housing Type	Silicone Coated
Composition	Wirewound
Features	Flame Proof, Safety
Lead Style	Solder Lugs
Mounting Feature	Brackets
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Tubular
Power (Watts)	1500 W
Resistance	15 Ohms
Size / Dimension [diameter]	60 mm
Size / Dimension [diameter]	2.362 in
Size / Dimension [x]	16.339 in
Size / Dimension [x]	415 mm
Temperature Coefficient	440 ppm/°C
Tolerance	5 %

TE1500 Series

Part	Features	Package / Case	Tolerance	Temperature Coefficient	Coating, Housing Type	Composition	Power (Watts)	Resistance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Lead Style
TE Connectivity Passive Product TE1500B33RJ	Flame Proof Safety	Radial Tubular	5 %	440 ppm/°C	Silicone Coated	Wirewound	1500 W	33 Ohms	16.339 in	415 mm	60 mm	2.362 in	Brackets	155 °C	-55 °C	Solder Lugs
TE Connectivity Passive Product TE1500B330RJ	Flame Proof Safety	Radial Tubular	5 %	440 ppm/°C	Silicone Coated	Wirewound	1500 W	330 Ohms	16.339 in	415 mm	60 mm	2.362 in	Brackets	155 °C	-55 °C	Solder Lugs
TE Connectivity Passive Product TE1500B10RJ	Flame Proof Safety	Radial Tubular	5 %	440 ppm/°C	Silicone Coated	Wirewound	1500 W	10 Ohms	16.339 in	415 mm	60 mm	2.362 in	Brackets	155 °C	-55 °C	Solder Lugs
TE Connectivity Passive Product TE1500B3R9J	Flame Proof Safety	Radial Tubular	5 %	440 ppm/°C	Silicone Coated	Wirewound	1500 W	3.9 Ohms	16.339 in	415 mm	60 mm	2.362 in	Brackets	155 °C	-55 °C	Solder Lugs
TE Connectivity Passive Product TE1500B1R8J	Flame Proof Safety	Radial Tubular	5 %	440 ppm/°C	Silicone Coated	Wirewound	1500 W	1.8 Ohms	16.339 in	415 mm	60 mm	2.362 in	Brackets	155 °C	-55 °C	Solder Lugs
TE Connectivity Passive Product TE1500B220RJ	Flame Proof Safety	Radial Tubular	5 %	440 ppm/°C	Silicone Coated	Wirewound	1500 W	220 Ohms	16.339 in	415 mm	60 mm	2.362 in	Brackets	155 °C	-55 °C	Solder Lugs
TE Connectivity Passive Product TE1500B1K8J	Flame Proof Safety	Radial Tubular	5 %	440 ppm/°C	Silicone Coated	Wirewound	1500 W	1.8 kOhms	16.339 in	415 mm	60 mm	2.362 in	Brackets	155 °C	-55 °C	Solder Lugs
TE Connectivity Passive Product TE1500B2R7J	Flame Proof Safety	Radial Tubular	5 %	440 ppm/°C	Silicone Coated	Wirewound	1500 W	2.7 Ohms	16.339 in	415 mm	60 mm	2.362 in	Brackets	155 °C	-55 °C	Solder Lugs
TE Connectivity Passive Product TE1500B470RJ	Flame Proof Safety	Radial Tubular	5 %	440 ppm/°C	Silicone Coated	Wirewound	1500 W	470 Ohms	16.339 in	415 mm	60 mm	2.362 in	Brackets	155 °C	-55 °C	Solder Lugs
TE Connectivity Passive Product TE1500B15RJ	Flame Proof Safety	Radial Tubular	5 %	440 ppm/°C	Silicone Coated	Wirewound	1500 W	15 Ohms	16.339 in	415 mm	60 mm	2.362 in	Brackets	155 °C	-55 °C	Solder Lugs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 87.63
		10	$ 73.61
		25	$ 71.36
		50	$ 67.60
		100	$ 61.97

Description

General part information

TE1500 Series

15 Ohms ±5% 1500W Wirewound Chassis Mount Resistor
