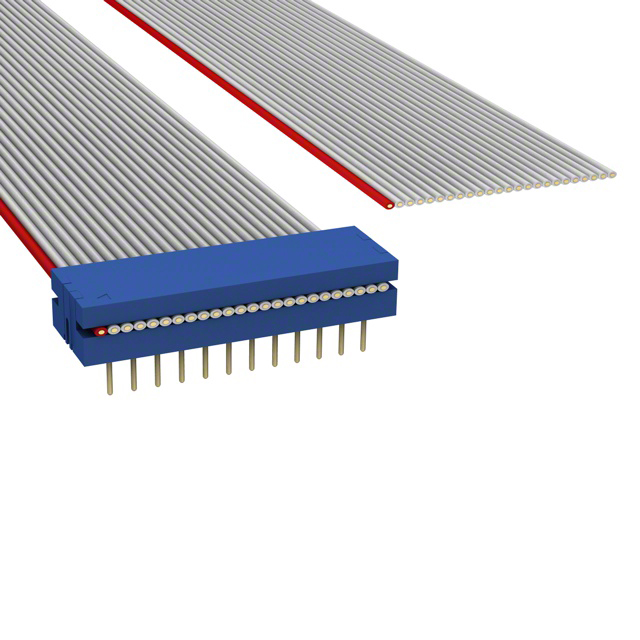

C2PXG-2436G
ActiveCW Industries
DIP CABLE - CDP24G/AE24G/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRibbon Cable Assembly Length Guide
C2PXG-2436G
ActiveCW Industries
DIP CABLE - CDP24G/AE24G/X
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | C2PXG-2436G |
|---|---|
| Cable Termination | IDC |
| Connector Type | DIP to Cable |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Board In, Socket (0.6") |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.99 | |
| 10 | $ 8.44 | |||
| 25 | $ 7.62 | |||
| 50 | $ 7.07 | |||
| 100 | $ 6.57 | |||
| 250 | $ 5.98 | |||
| 500 | $ 5.58 | |||
| 1000 | $ 5.22 | |||
Description
General part information
C2PXG-2 Series
24 Position Cable Assembly Rectangular DIP to Cable 3.00' (914.40mm)
