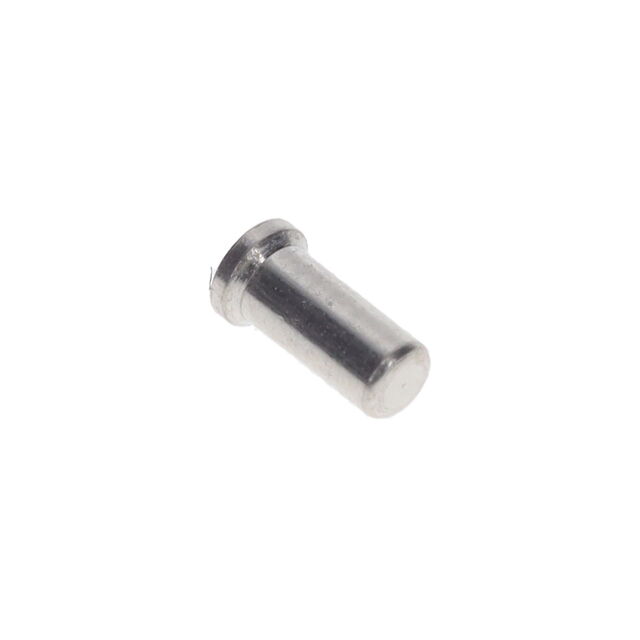

9353-0-15-01-18-01-10-0
ActiveMill-Max Manufacturing Corp.
CONN RECEPT PIN .037-.043" .147"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9353-0-15-01-18-01-10-0
ActiveMill-Max Manufacturing Corp.
CONN RECEPT PIN .037-.043" .147"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9353-0-15-01-18-01-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.043 in |
| Accepts Pin Diameter [Max] | 1.09 mm |
| Accepts Pin Diameter [Min] | 0.037 in |
| Accepts Pin Diameter [Min] | 0.94 mm |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 2.29 mm |
| Flange Diameter [diameter] | 0.09 in |
| Length - Overall [x] | 0.17 in |
| Length - Overall [x] | 4.32 mm |
| Mounting Hole Diameter | 0.071 in |
| Mounting Hole Diameter | 1.8 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 1.37 mm |
| Pin Hole Diameter [diameter] | 0.054 in |
| Socket Depth | 0.147 in |
| Socket Depth | 3.73 mm |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.12 | |
| 10 | $ 0.95 | |||
| 25 | $ 0.89 | |||
| 50 | $ 0.85 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.72 | |||
| 1000 | $ 0.68 | |||
| 3000 | $ 0.63 | |||
Description
General part information
9353-0 Series
Pin Receptacle Connector 0.037" ~ 0.043" (0.94mm ~ 1.09mm) No Tail Solder
