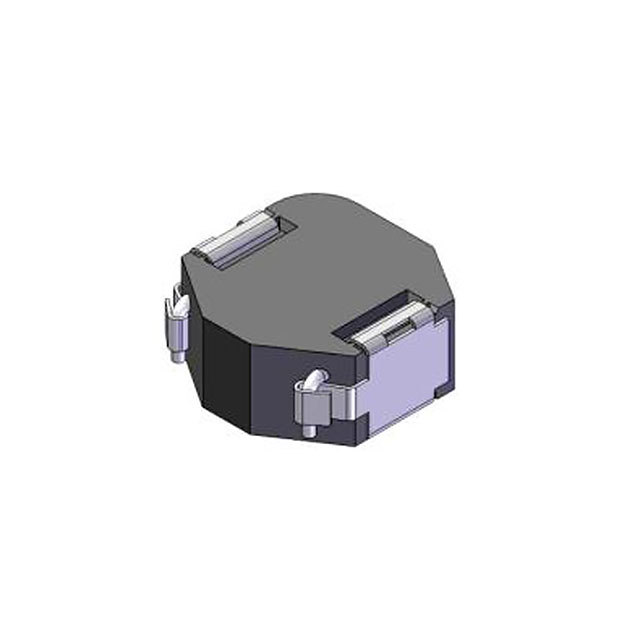

DFEG12060D-2R2M=P3

Obsolete

Murata Power Solutions Inc.

FIXED IND 2.2UH 16A 4.4MOHM SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FIXED IND 2.2UH 16A 4.4MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	DC Resistance (DCR)	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Ratings	Inductance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Tolerance	Inductance Frequency - Test	Current Rating (Amps)	Mounting Type	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. DFEG12060D-8R2M=P3	17 mOhm	Nonstandard	0.236 in	6 mm	Shielded	AEC-Q200	8.2 µH	0.496 in	12.6 mm	0.512 in	13 mm	11 A	125 °C	-40 °C	Iron Powder	20 %	100 kHz	8 A	Surface Mount
Murata Power Solutions Inc. DFEG12060D-2R2M=P3		Nonstandard	0.236 in	6 mm	Shielded	AEC-Q200	2.2 µH	0.496 in	12.6 mm	0.512 in	13 mm	21 A	125 °C	-40 °C	Iron Powder	20 %	100 kHz	16 A	Surface Mount	4.4 mOhm
Murata Power Solutions Inc. DFEG12060D-3R3M=P3		Nonstandard	0.236 in	6 mm	Shielded	AEC-Q200	3.3 µH	0.496 in	12.6 mm	0.512 in	13 mm	18 A	125 °C	-40 °C	Iron Powder	20 %	100 kHz	13 A	Surface Mount	6.3 mOhm
Murata Power Solutions Inc. DFEG12060D-5R6M=P3		Nonstandard	0.236 in	6 mm	Shielded	AEC-Q200	5.6 µH	0.496 in	12.6 mm	0.512 in	13 mm	13 A	125 °C	-40 °C	Iron Powder	20 %	100 kHz	10 A	Surface Mount	11 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.2 µH Shielded Inductor 16 A 4.4mOhm Max Nonstandard
