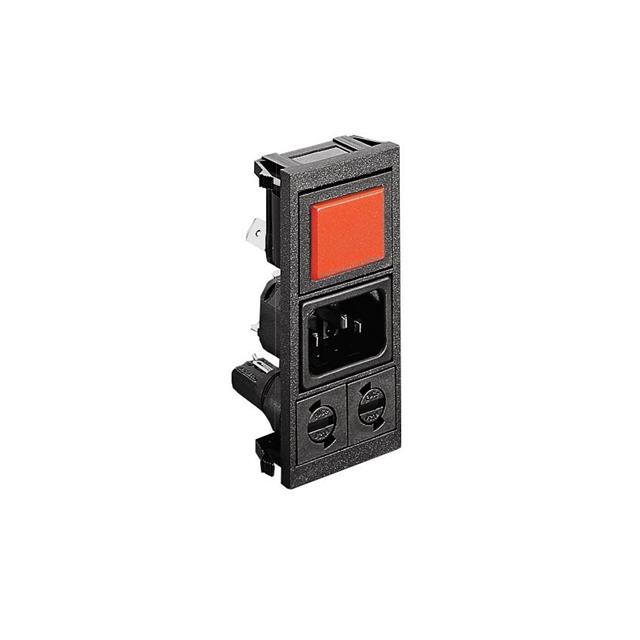

BZV03/A0620/15
ActiveBULGIN LIMITED
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BZV03/A0620/15
ActiveBULGIN LIMITED
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BZV03/A0620/15 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | VDE, CSA, UL, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Current Rating - Filter | 6 A |
| Features | Voltage Selector |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 34.4 mm |
| Panel Cutout Dimensions [y] | 76.5 mm |
| Panel Thickness [Max] | 3 mm |
| Panel Thickness [Max] | 0.118 in |
| Panel Thickness [Min] | 0.039 in |
| Panel Thickness [Min] | 1 mm |
| Switch Features | Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
BZV03/A Series
| Part | Termination | Termination | Termination | Current Rating - Appliance Inlet | Current Rating - Filter | Connector Style | Switch Features | Accomodates a Fuse | Mounting Type | Approval Agency | Connector Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Filter Type | Voltage Rating - Appliance Inlet | Material Flammability Rating | Fuse Holder, Drawer | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | 0.25 in | 6.3 mm | Quick Connect | 10 A | 6 A | IEC 320-C14 | Switch On-Off | Panel Mount Snap-In | CSA ENEC UL VDE | Receptacle Male Blades - Module | 76.5 mm | 34.4 mm | 3 mm | 0.118 in | 0.039 in | 1 mm | Filtered (EMI RFI) - Commercial | 250 VAC | UL94 V-0 | Fuse Holder Twin Fused | ||
BULGIN LIMITED | 0.25 in | 6.3 mm | Quick Connect | 10 A | 3 A | IEC 320-C14 | Switch On-Off | Panel Mount Snap-In | CSA ENEC UL VDE | Receptacle Male Blades - Module | 76.5 mm | 34.4 mm | 3 mm | 0.118 in | 0.039 in | 1 mm | Filtered (EMI RFI) - Commercial | 250 VAC | UL94 V-0 | Fuse Holder Twin Fused | Bleed Resistor Surge Protection | |
BULGIN LIMITED | 0.25 in | 6.3 mm | Quick Connect | 10 A | 6 A | IEC 320-C14 | Switch On-Off | Panel Mount Snap-In | CSA ENEC UL VDE | Receptacle Male Blades - Module | 48.4 mm | 34.4 mm | 3 mm | 0.118 in | 0.039 in | 1 mm | Filtered (EMI RFI) - Commercial | 250 VAC | UL94 V-0 | |||
BULGIN LIMITED | 0.25 in | 6.3 mm | Quick Connect | 10 A | 3 A | IEC 320-C14 | Switch On-Off | Panel Mount Snap-In | CSA ENEC UL VDE | Receptacle Male Blades - Module | 76.5 mm | 34.4 mm | 3 mm | 0.118 in | 0.039 in | 1 mm | Filtered (EMI RFI) - Commercial | 250 VAC | UL94 V-0 | Fuse Holder Twin Fused | ||
BULGIN LIMITED | 0.25 in | 6.3 mm | Quick Connect | 10 A | 6 A | IEC 320-C14 | Switch On-Off | Panel Mount Snap-In | CSA ENEC UL VDE | Receptacle Male Blades - Module | 76.5 mm | 34.4 mm | 3 mm | 0.118 in | 0.039 in | 1 mm | Filtered (EMI RFI) - Commercial | 250 VAC | UL94 V-0 | Fuse Holder Twin Fused | ||
BULGIN LIMITED | 0.25 in | 6.3 mm | Quick Connect | 10 A | 6 A | IEC 320-C14 | Switch On-Off | Panel Mount Snap-In | CSA ENEC UL VDE | Receptacle Male Blades - Module | 76.5 mm | 34.4 mm | 3 mm | 0.118 in | 0.039 in | 1 mm | Filtered (EMI RFI) - Commercial | 250 VAC | UL94 V-0 | Fuse Holder Twin Fused | Voltage Selector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BZV03/A Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
