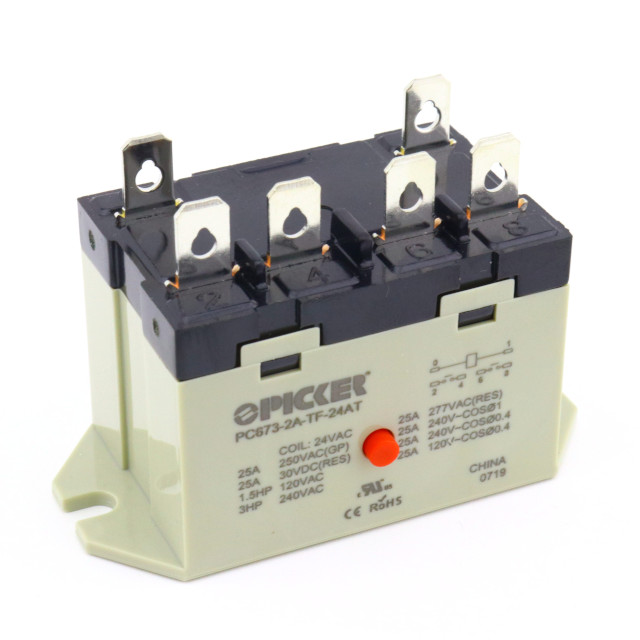

PC673-2A-TF-24AT
ActivePicker Components
RELAY GEN PURPOSE DPST 25A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC673-2A-TF-24AT
ActivePicker Components
RELAY GEN PURPOSE DPST 25A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC673-2A-TF-24AT |
|---|---|
| Approval Agency | cUL, cURus, UL |
| Coil Current | 87.3 mA |
| Coil Insulation | Class F |
| Coil Resistance | 275 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 25 A |
| Features | Test Button |
| Load - Max Switching | 6925 VA, 3750 W |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 19.2 VAC |
| Must Release Voltage | 2.4 VAC/DC |
| Operate Time | 30 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Relay Type | General Purpose |
| Release Time | 30 ms |
| Switching Voltage | 150 VDC, 277 VAC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 10 | $ 10.41 | |
Description
General part information
PC673-2A Series
General Purpose Relay DPST-NO (2 Form A) 24VAC Coil Chassis Mount
