1806J1000221MCTE01
ActiveKnowles Johanson Manufacturing

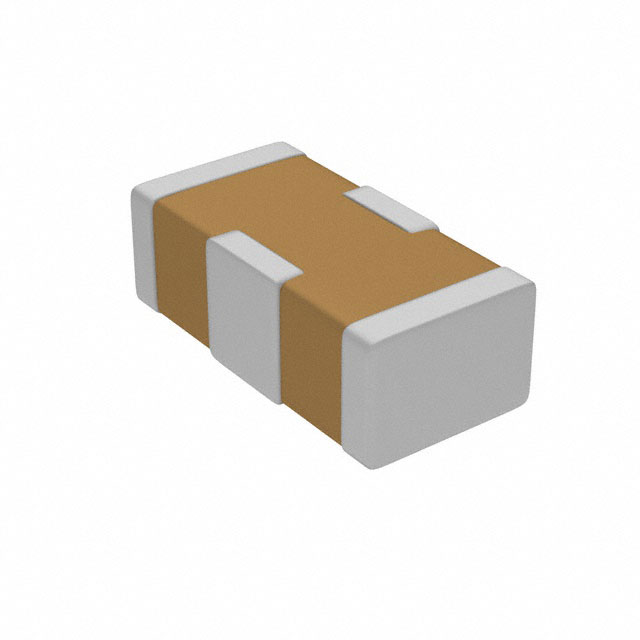

CAP FEEDTHRU 220PF 20% 100V 1806
Deep-Dive with AI
Search across all available documentation for this part.
1806J1000221MCTE01
ActiveKnowles Johanson Manufacturing
CAP FEEDTHRU 220PF 20% 100V 1806
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1806J1000221MCTE01 |
|---|---|
| Capacitance | 220 pF |
| Height (Max) [Max] | 0.051 " |
| Height (Max) [Max] | 1.3 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1806 (4516 Metric) |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 1.6 mm |
| Size / Dimension [y] | 0.063 in |
| Temperature Coefficient | NP0, C0G |
| Tolerance | 20 % |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.06 | |
| 10 | $ 1.34 | |||
| 50 | $ 1.06 | |||
| 100 | $ 0.97 | |||
| 500 | $ 0.92 | |||
| Digi-Reel® | 1 | $ 2.06 | ||
| 10 | $ 1.34 | |||
| 50 | $ 1.06 | |||
| 100 | $ 0.97 | |||
| 500 | $ 0.92 | |||
| Tape & Reel (TR) | 2500 | $ 1.01 | ||
| 5000 | $ 0.96 | |||
| 7500 | $ 0.94 | |||
Description
General part information
1806J Series
220 pF Feed Through Capacitor 100V 300 mA 1806 (4516 Metric)
Documents
Technical documentation and resources
No documents available
