CWR-210-16-0203

Active

CW Industries

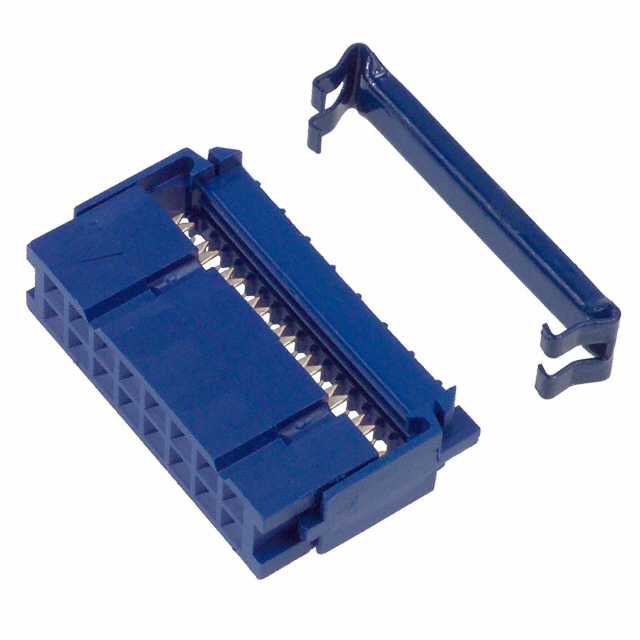

CONN RCPT 16POS IDC TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CWR-210-16-0203

Active

CW Industries

CONN RCPT 16POS IDC TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWR-210-16-0203

Cable Termination	IDC
Color	Blue
Connector Type	Receptacle
Contact Finish	Tin
Contact Type	Female Socket
Features	Feed Through, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

CWR-210 Series

Part	Mounting Type	Wire Type	Contact Type	Pitch [x]	Pitch [x]	Number of Rows	Features	Contact Finish	Color	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Row Spacing [x]	Row Spacing	Number of Positions
CW Industries CWR-210-16-0000	Free Hanging (In-Line)	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	Feed Through Strain Relief	Gold	Blue	IDC	10 Áin	0.25 Ám	Receptacle	16	0.1 in	2.54 mm
CW Industries CWR-210-34-0203	Free Hanging (In-Line)	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	Feed Through Strain Relief	Tin	Blue	IDC			Receptacle		0.1 in	2.54 mm	34
CW Industries CWR-210-50-0203	Free Hanging (In-Line)	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	Feed Through Strain Relief	Tin	Blue	IDC			Receptacle		0.1 in	2.54 mm	50
CW Industries CWR-210-10-0203	Free Hanging (In-Line)	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	Feed Through Strain Relief	Tin	Blue	IDC			Receptacle		0.1 in	2.54 mm	10
CW Industries CWR-210-34-0000	Free Hanging (In-Line)	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	Feed Through Strain Relief	Gold	Blue	IDC	10 Áin	0.25 Ám	Receptacle		0.1 in	2.54 mm	34
CW Industries CWR-210-14-0021	Free Hanging (In-Line)	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	Feed Through Strain Relief	Gold	Blue	IDC	30 Áin	0.76 Ám	Receptacle		0.1 in	2.54 mm	14
CW Industries CWR-210-10-0000	Free Hanging (In-Line)	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	Feed Through Strain Relief	Gold	Blue	IDC	10 Áin	0.25 Ám	Receptacle		0.1 in	2.54 mm	10
CW Industries CWR-210-16-0203	Free Hanging (In-Line)	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	Feed Through Strain Relief	Tin	Blue	IDC			Receptacle	16	0.1 in	2.54 mm
CW Industries CWR-210-60-0000	Free Hanging (In-Line)	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	Feed Through Strain Relief	Gold	Blue	IDC	10 Áin	0.25 Ám	Receptacle		0.1 in	2.54 mm	60
CW Industries CWR-210-50-0021	Free Hanging (In-Line)	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	Feed Through Strain Relief	Gold	Blue	IDC	30 Áin	0.76 Ám	Receptacle		0.1 in	2.54 mm	50

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.95
		10	$ 2.68
		25	$ 2.54
		50	$ 2.48
		100	$ 2.36
		300	$ 2.07
		500	$ 2.01
		1000	$ 1.71
		2500	$ 1.60

Description

General part information

CWR-210 Series

16 Position Rectangular Receptacle Connector IDC Tin
