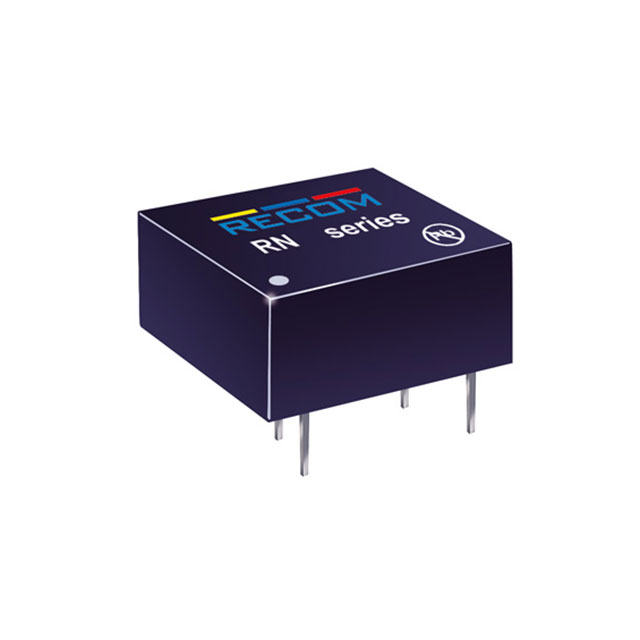

RN-2405S/HP

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1.25W DC/DC 2KV UNREG 24VIN 5VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RN-2405S/HP

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1.25W DC/DC 2KV UNREG 24VIN 5VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RN-2405S/HP

Applications	ITE (Commercial)
Current - Output (Max) [Max]	250 mA
Efficiency	72 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module
Package / Case	4 Lead
Power (Watts)	1.25 W
Size / Dimension [x]	0.5 in
Size / Dimension [x]	12.8 mm
Size / Dimension [y]	10.1 mm
Size / Dimension [y]	0.4 in
Size / Dimension [z]	0.3 "
Size / Dimension [z]	7.6 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	26.4 V
Voltage - Input (Min) [Min]	21.6 V
Voltage - Isolation	2000 V
Voltage - Output 1	5 V

RN-3.33.3 Series

Isolated DC/DC Converters - Through Hole 1.25W DC/DC 1kV UNREG 12Vin 9Vout

...

Part	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Voltage - Output 1	Mounting Type	Number of Outputs	Voltage - Isolation	Power (Watts)	Voltage - Input (Min) [Min]	Applications	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Features	Voltage - Input (Max) [Max]
RECOM Power RN-0524S/H	8-DIP Module	4 Lead	0.5 in	10.1 mm	12.8 mm	0.3 "	7.6 mm	0.4 in	85 %	24 V	Through Hole	1	2000 V	1.25 W	4.5 V	ITE (Commercial)	52 mA	85 °C	-40 °C	Isolated Module	SCP	5.5 V
RECOM Power RN-1507S/HP	8-DIP Module	4 Lead	0.5 in	10.1 mm	12.8 mm	0.3 "	7.6 mm	0.4 in	75 %	7 V	Through Hole	1	2000 V	1.25 W	13.5 V	ITE (Commercial)	180 mA	85 °C	-40 °C	Isolated Module	SCP	16.5 V
RECOM Power RN-3.324S/HP	8-DIP Module	4 Lead	0.5 in	10.1 mm	12.8 mm	0.3 "	7.6 mm	0.4 in	85 %	24 V	Through Hole	1	2000 V	1.25 W	2.97 V	ITE (Commercial)	52 mA	85 °C	-40 °C	Isolated Module	SCP	3.63 V
RECOM Power RN-3.309S	8-DIP Module	4 Lead	0.5 in	10.1 mm	12.8 mm	0.3 "	7.6 mm	0.4 in	80 %	9 V	Through Hole	1	1000 V	1.25 W	2.97 V	ITE (Commercial)	140 mA	85 °C	-40 °C	Isolated Module	SCP	3.63 V
RECOM Power RN-0509S/H	8-DIP Module	4 Lead	0.5 in	10.1 mm	12.8 mm	0.3 "	7.6 mm	0.4 in	80 %	9 V	Through Hole	1	2000 V	1.25 W	4.5 V	ITE (Commercial)	140 mA	85 °C	-40 °C	Isolated Module	SCP	5.5 V
RECOM Power RN-1212S	8-DIP Module	4 Lead	0.5 in	10.1 mm	12.8 mm	0.3 "	7.6 mm	0.4 in		12 V	Through Hole	1	1000 V	1.25 W	10.8 V	ITE (Commercial)	104 mA	85 °C	-40 °C	Isolated Module	SCP	13.2 V
RECOM Power RN-3.33.3S/H	8-DIP Module	4 Lead	0.5 in	10.1 mm	12.8 mm	0.3 "	7.6 mm	0.4 in	70 %	3.3 V	Through Hole	1	2000 V	1.25 W	2.97 V	ITE (Commercial)	378 mA	85 °C	-40 °C	Isolated Module	SCP	3.63 V
RECOM Power RN-1205S/HP	8-DIP Module	4 Lead	0.5 in	10.1 mm	12.8 mm	0.3 "	7.6 mm	0.4 in	72 %	5 V	Through Hole	1	2000 V	1.25 W	10.8 V	ITE (Commercial)	250 mA	85 °C	-40 °C	Isolated Module	SCP	13.2 V
RECOM Power RN-0907S	8-DIP Module	4 Lead	0.5 in	10.1 mm	12.8 mm	0.3 "	7.6 mm	0.4 in	75 %	7 V	Through Hole	1	1000 V	1.25 W	8.1 V	ITE (Commercial)	180 mA	85 °C	-40 °C	Isolated Module	SCP	9.9 V
RECOM Power RN-2405S/HP	8-DIP Module	4 Lead	0.5 in	10.1 mm	12.8 mm	0.3 "	7.6 mm	0.4 in	72 %	5 V	Through Hole	1	2000 V	1.25 W	21.6 V	ITE (Commercial)	250 mA	85 °C	-40 °C	Isolated Module	SCP	26.4 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	39	$ 9.81
Sager	N/A	1	$ 10.11
		5	$ 9.80
		10	$ 9.34
		25	$ 9.05
		50	$ 8.94
		100	$ 8.68
		250	$ 8.10

Description

General part information

RN-3.33.3 Series

Isolated DC/DC Converters - Through Hole 1.25W DC/DC 1kV UNREG 12Vin 9Vout
