8600-0-05-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

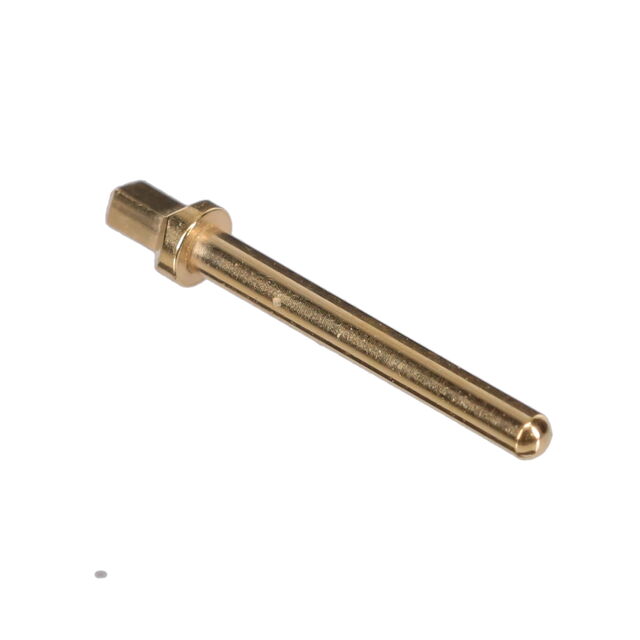

CONN PC PIN CIRC .040DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
8600-0-05-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .040DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8600-0-05-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 9.25 mm |
| Length - Above Flange [x] | 0.364 in |
| Length - Below Flange [x] | 1.52 mm |
| Length - Below Flange [x] | 0.06 in |
| Length - Overall [x] | 11.68 mm |
| Length - Overall [x] | 0.46 in |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Pin Size - Below Flange | 0.89 mm |
| Pin Size - Below Flange | 0.035 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit, Square |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.98 | |
| 10 | $ 0.83 | |||
| 25 | $ 0.79 | |||
| 50 | $ 0.78 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.68 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.54 | |||
| 3000 | $ 0.49 | |||
Description
General part information
8600-0 Series
PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia
