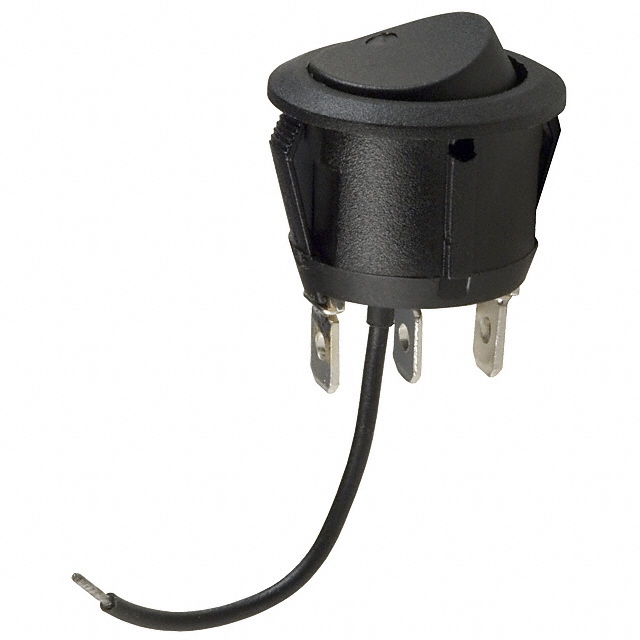

CLS-RC12E12190YG

Obsolete

Lumex Opto/Components Inc.

SWITCH ROCKER SPDT 20A 12V

Search across all available documentation for this part.

Obsolete

Lumex Opto/Components Inc.

SWITCH ROCKER SPDT 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	CLS-RC12E12190YG

Actuator Marking	No Marking
Actuator Type	Round - Illuminated
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Illumination Type, Color	Green, Yellow, LED
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - DC	12 V

Part	Color - Actuator/Cap	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Actuator Marking	Switch Function	Actuator Type	Mounting Type	Circuit
Lumex Opto/Components Inc. CLS-RC12E12190YG	Black	Green LED Yellow	20.2 mm	12 V	Quick Connect - 0.187" (4.7mm)	20 A	No Marking	On-On	Round - Illuminated	Panel Mount Snap-In	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPDT 20A (DC) Panel Mount, Snap-In
