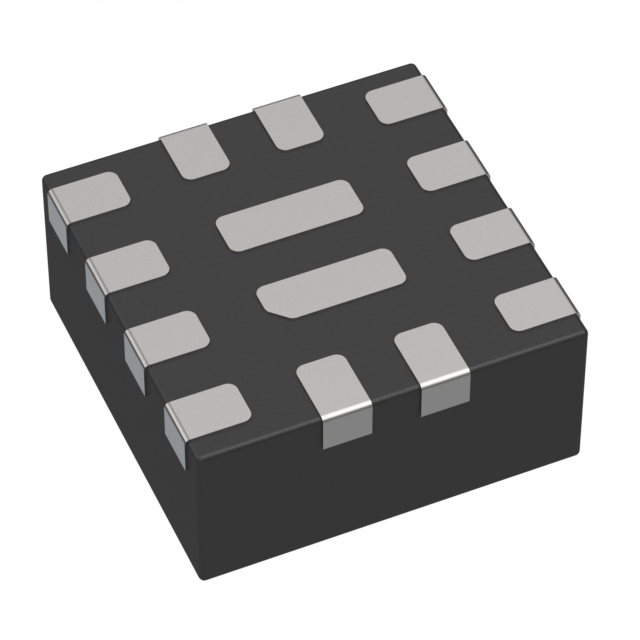

MP3424GG-P

Active

MONOLITHIC POWER SYSTEMS (MPS)

CURRENT PROGRAMMABLE, CC/CV SYNCHRONOUS STEP-UP CONVERTER WITH OUTPUT DISCONNECT

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

CURRENT PROGRAMMABLE, CC/CV SYNCHRONOUS STEP-UP CONVERTER WITH OUTPUT DISCONNECT

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Package / Case	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Frequency - Switching	Function	Output Configuration	Voltage - Output (Max) [Max]	Output Type	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Current - Output
MONOLITHIC POWER SYSTEMS (MPS) MP3424GG-P	Surface Mount	14-PowerVFQFN	14-QFN (2x2)
MONOLITHIC POWER SYSTEMS (MPS) MP3424AGG-Z	Surface Mount	14-PowerVFQFN	14-QFN (2x2)	-40 °C	125 ¯C	Boost	580 kHz	Step-Up	Positive	5.5 V	Adjustable	2 V	1	5.5 V	3.1 A
MONOLITHIC POWER SYSTEMS (MPS) MP3424GG-Z	Surface Mount	14-PowerVFQFN	14-QFN (2x2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switching Regulator IC Output 14-PowerVFQFN

Technical documentation and resources

No documents available
