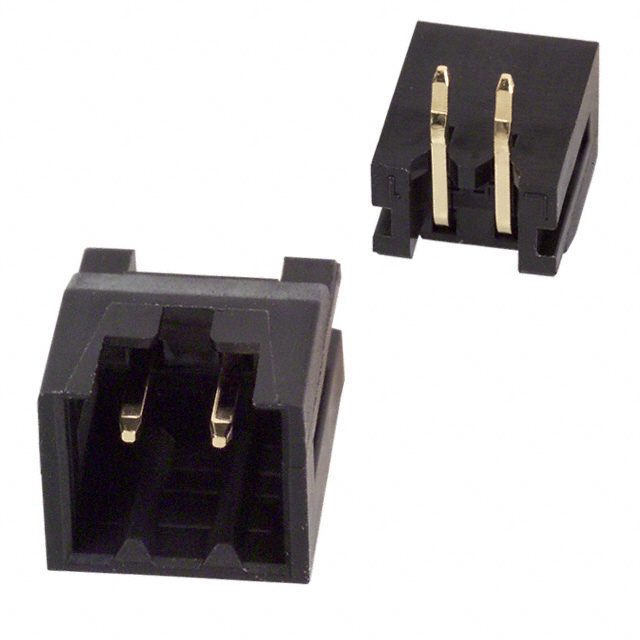

DF3-2P-2DS(22)

Active

Hirose Electric USA, Inc.

CONN HEADER R/A 2POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF3-2P-2DS(22)

Active

Hirose Electric USA, Inc.

CONN HEADER R/A 2POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3-2P-2DS(22)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Length - Mating [x]	0.122 in
Contact Length - Mating [x]	3.1 mm
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder, Press-Fit

DF3-2 Series

Part	Insulation Color	Connector Type	Contact Shape	Number of Positions	Current Rating (Amps)	Style	Insulation Material	Contact Finish - Post	Voltage Rating	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Mated Stacking Heights [z]	Contact Type	Material Flammability Rating	Contact Material	Fastening Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Features	Shrouding	Contact Length - Mating [x]	Contact Length - Mating [x]	Wire Gauge	Color	Wire Type	Contact Finish	Cable Termination	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. DF3-2S-2DSA(25)	Black	Receptacle	Square	2	3 A	Board to Board Cable	Nylon Polyamide (PA)	Tin	30 VAC	Solder	0.079 in	2 mm	2 çm	78.7 çin	All	1	78.7 µin	2 µm	5.9 mm	0.232 in	6.6 mm 7.5 mm	Female Socket	UL94 V-0	Phosphor Bronze	Friction Lock	Through Hole	-30 ░C	85 °C	0.118 in	3 mm
Hirose Electric USA, Inc. DF3-2S-2DSA(20)	Black	Receptacle	Square	2	3 A	Board to Board Cable	Nylon Polyamide (PA)	Tin	30 VAC	Solder	0.079 in	2 mm			All	1			5.9 mm	0.232 in	6.6 mm 7.5 mm	Female Socket	UL94 V-0	Phosphor Bronze	Friction Lock	Through Hole	-30 ░C	85 °C	0.118 in	3 mm
Hirose Electric USA, Inc. DF3-2S-2DSA(50)	Black	Receptacle	Square	2	3 A	Board to Board Cable	Nylon Polyamide (PA)	Tin	30 VAC	Solder	0.079 in	2 mm			All	1			5.9 mm	0.232 in	6.6 mm 7.5 mm	Female Socket	UL94 V-0	Phosphor Bronze	Friction Lock	Through Hole	-30 ░C	85 °C	0.118 in	3 mm	Gold
Hirose Electric USA, Inc. DF3-2428SCFC(07)																																Socket	24 AWG	28 AWG	Crimp
Hirose Electric USA, Inc. DF3-2P-2H(20)	Beige	Header	Circular	2	3 A	Board to Board Cable	Nylon Polyamide (PA)	Tin		Solder	0.079 in	2 mm			All	1			5.6 mm	0.22 in		Male Pin	UL94 V-0	Brass	Push-Pull	Surface Mount Right Angle	-55 °C	105 ░C								Board Guide	Shrouded - 4 Wall
Hirose Electric USA, Inc. DF3-2P-2DS(22)	Black	Header	Square	2	3 A	Board to Board Cable	Nylon Polyamide (PA)			Press-Fit Solder	0.079 in	2 mm			All	1			5 mm	0.197 in		Male Pin	UL94 V-0	Brass	Push-Pull	Through Hole Right Angle	-55 °C	105 ░C	0.114 in	2.9 mm	Gold						Shrouded - 4 Wall	0.122 in	3.1 mm
Hirose Electric USA, Inc. DF3-22SCF(40)																																Socket			Crimp					22 AWG
Hirose Electric USA, Inc. DF3-2S-2DSA(55)	Black	Receptacle	Square	2	3 A	Board to Board Cable	Nylon Polyamide (PA)	Tin	30 VAC	Solder	0.079 in	2 mm	1 çm	39.4 çin	All	1	8 Áin	0.203 Ám	5.9 mm	0.232 in	6.6 mm 7.5 mm	Female Socket	UL94 V-0	Phosphor Bronze	Friction Lock	Through Hole	-30 ░C	85 °C	0.118 in	3 mm	Gold
Hirose Electric USA, Inc. DF3-2S-2R26(05)		Receptacle		2												1						Female Socket				Free Hanging (In-Line)										Closed End				26 AWG	Black	Discrete	Tin	IDC	0.079 in	2 mm
Hirose Electric USA, Inc. DF3-2P-2V(50)	Beige	Header	Circular	2	3 A	Board to Board Cable	Nylon Polyamide (PA)			Solder	0.079 in	2 mm			All	1			5.9 mm	0.232 in		Male Pin	UL94 V-0	Brass	Push-Pull	Surface Mount	-55 °C	105 ░C			Gold					Board Guide	Shrouded - 4 Wall

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.71
		10	$ 0.54
		100	$ 0.41
		500	$ 0.34
		1000	$ 0.32
		5000	$ 0.27
		10000	$ 0.25

Description

General part information

DF3-2 Series

Connector Header Through Hole, Right Angle 2 position 0.079" (2.00mm)
