C3BBG-1006G

Active

CW Industries

IDC CABLE - CSR10G/AE10G/CSR10G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSR10G/AE10G/CSR10G

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Cable Termination	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Shielding	Length	Length	Length	Number of Positions	Features	Connector Type	Pitch - Cable	Pitch - Cable	Number of Rows	Color	Length [x]	Length [x]	Number of Positions
CW Industries C3BBG-1406G	Gold	IDC	0.1 in	2.54 mm	10 Áin	0.25 Ám	Unshielded	152.4 mm	6 "	0.5 '	14	Strain Relief	Socket to Socket	0.05 "	1.27 mm	2
CW Industries C3BBG-1018M	Gold	IDC	0.1 in	2.54 mm	10 Áin	0.25 Ám	Unshielded				10	Strain Relief	Socket to Socket	0.05 "	1.27 mm	2	Multiple Ribbon	457.2 mm	1.5 ft
CW Industries C3BBG-1436M	Gold	IDC	0.1 in	2.54 mm	10 Áin	0.25 Ám	Unshielded				14	Strain Relief	Socket to Socket	0.05 "	1.27 mm	2	Multiple Ribbon	914.4 mm	3 ft
CW Industries C3BBG-1006G	Gold	IDC	0.1 in	2.54 mm	10 Áin	0.25 Ám	Unshielded	152.4 mm	6 "	0.5 '	10	Strain Relief	Socket to Socket	0.05 "	1.27 mm	2
CW Industries C3BBG-1006M	Gold	IDC	0.1 in	2.54 mm	10 Áin	0.25 Ám	Unshielded	152.4 mm	6 "	0.5 '	10	Strain Relief	Socket to Socket	0.05 "	1.27 mm	2	Multiple Ribbon
CW Industries C3BBG-1636G	Gold	IDC	0.1 in	2.54 mm	10 Áin	0.25 Ám	Unshielded					Strain Relief	Socket to Socket	0.05 "	1.27 mm	2		914.4 mm	3 ft	16
CW Industries C3BBG-1618M	Gold	IDC	0.1 in	2.54 mm	10 Áin	0.25 Ám	Unshielded					Strain Relief	Socket to Socket	0.05 "	1.27 mm	2	Multiple Ribbon	457.2 mm	1.5 ft	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

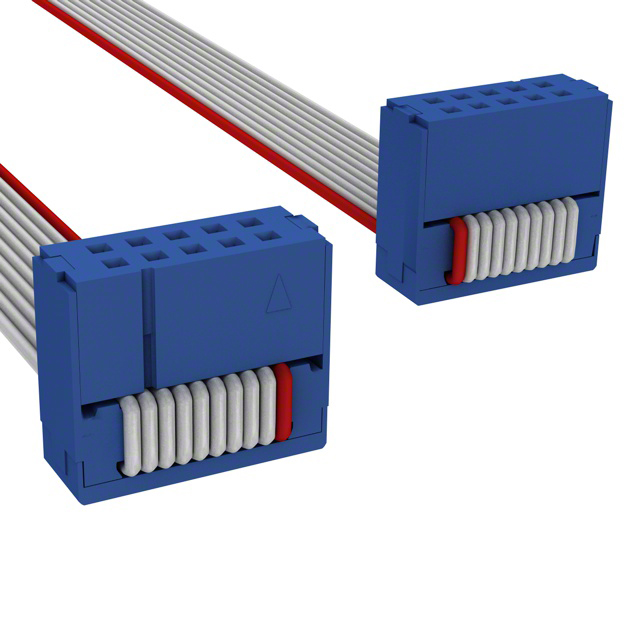

10 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Technical documentation and resources
