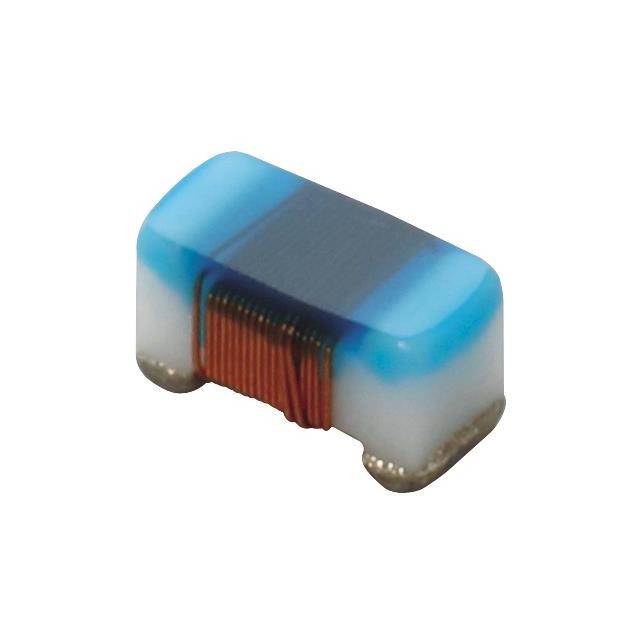

LQW15AN5N0C0ZD

Active

Murata Power Solutions Inc.

FIXED IND 5NH 600MA 0.12OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LQW15AN5N0C0ZD

Active

Murata Power Solutions Inc.

FIXED IND 5NH 600MA 0.12OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQW15AN5N0C0ZD

Current Rating (Amps)	600 mA
DC Resistance (DCR)	120 mOhm
Frequency - Self Resonant	8 GHz
Height - Seated (Max) [Max] [z]	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in
Inductance	5 nH
Inductance Frequency - Test	100 MHz
Material - Core	Non-Magnetic
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1005 Metric)
Q @ Freq	250 MHz, 25
Ratings	AEC-Q200
Shielding	Unshielded
Size / Dimension [x]	1 mm
Size / Dimension [x]	0.039 in
Size / Dimension [y]	0.6 mm
Size / Dimension [y]	0.024 "
Tolerance	0.2 nH
Type	Wirewound, Drum Core

LQW15AN Series

...

Part	Inductance Frequency - Test	Q @ Freq	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Material - Core	Shielding	Ratings	Type	Frequency - Self Resonant	Tolerance	DC Resistance (DCR) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	DC Resistance (DCR)
Murata Power Solutions Inc. LQW15AN6N0C8ZD	100 MHz	32 250 MHz	1.6 A	-55 °C	125 °C	Surface Mount	0.6 mm	0.024 in	6 nH	Non-Magnetic	Unshielded	AEC-Q200	Drum Core Wirewound	8 GHz	0.2 nH	56 mOhm	0.6 mm	1 mm	0.024 "	0.039 in	0402 (1005 Metric)
Murata Power Solutions Inc. LQW15AN5N0C0ZD	100 MHz	25 250 MHz	600 mA	-55 °C	125 °C	Surface Mount	0.6 mm	0.024 in	5 nH	Non-Magnetic	Unshielded	AEC-Q200	Drum Core Wirewound	8 GHz	0.2 nH		0.6 mm	1 mm	0.024 "	0.039 in	0402 (1005 Metric)	120 mOhm
Murata Power Solutions Inc. LQW15AN9N1G8ZD	100 MHz	32 250 MHz	1.4 A	-55 °C	125 °C	Surface Mount	0.6 mm	0.024 in	9.1 nH	Non-Magnetic	Unshielded	AEC-Q200	Drum Core Wirewound	6.5 GHz	2 %	80 mOhm	0.6 mm	1 mm	0.024 "	0.039 in	0402 (1005 Metric)
Murata Power Solutions Inc. LQW15AN23NG00D	100 MHz	25 250 MHz	0.31 A	-55 °C	125 °C	Surface Mount	0.6 mm	0.024 in	23 nH	Non-Magnetic	Unshielded		Drum Core Wirewound	3.8 GHz	2 %	300 mOhm	0.6 mm	1 mm	0.024 "	0.039 in	0402 (1005 Metric)
Murata Power Solutions Inc. LQW15AN4N6C8ZD	100 MHz	32 250 MHz	1.45 A	-55 °C	125 °C	Surface Mount	0.6 mm	0.024 in		Non-Magnetic	Unshielded	AEC-Q200	Drum Core Wirewound	9.6 GHz	0.2 nH		0.6 mm	1 mm	0.024 "	0.039 in	0402 (1005 Metric)
Murata Power Solutions Inc. LQW15AN7N2H00D	100 MHz	25 250 MHz	570 mA	-55 °C	125 °C	Surface Mount	0.6 mm	0.024 in	7.2 nH	Non-Magnetic	Unshielded		Drum Core Wirewound	6 GHz	3 %	130 mOhm	0.6 mm	1 mm	0.024 "	0.039 in	0402 (1005 Metric)
Murata Power Solutions Inc. LQW15AN7N5G00D	100 MHz	25 250 MHz	570 mA	-55 °C	125 °C	Surface Mount	0.6 mm	0.024 in	7.5 nH	Non-Magnetic	Unshielded		Drum Core Wirewound	6 GHz	2 %	130 mOhm	0.6 mm	1 mm	0.024 "	0.039 in	0402 (1005 Metric)
Murata Power Solutions Inc. LQW15AN6N4D00D	100 MHz	25 250 MHz	700 mA	-55 °C	125 °C	Surface Mount	0.6 mm	0.024 in	6.4 nH	Non-Magnetic	Unshielded		Drum Core Wirewound	6 GHz	0.5 nH	90 mOhm	0.6 mm	1 mm	0.024 "	0.039 in	0402 (1005 Metric)
Murata Power Solutions Inc. LQW15AN5N0D00D	100 MHz	25 250 MHz	600 mA	-55 °C	125 °C	Surface Mount	0.6 mm	0.024 in	5 nH	Non-Magnetic	Unshielded		Drum Core Wirewound	8 GHz	0.5 nH		0.6 mm	1 mm	0.024 "	0.039 in	0402 (1005 Metric)	120 mOhm
Murata Power Solutions Inc. LQW15AN47NJ8ZD	100 MHz	25 200 MHz	0.44 A	-55 °C	125 °C	Surface Mount	0.6 mm	0.024 in	47 nH	Non-Magnetic	Unshielded	AEC-Q200	Drum Core Wirewound	3.2 GHz	5 %	648 mOhm	0.6 mm	1 mm	0.024 "	0.039 in	0402 (1005 Metric)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.07

Description

General part information

LQW15AN Series

5 nH Unshielded Drum Core, Wirewound Inductor 600 mA 120mOhm Max 0402 (1005 Metric)
