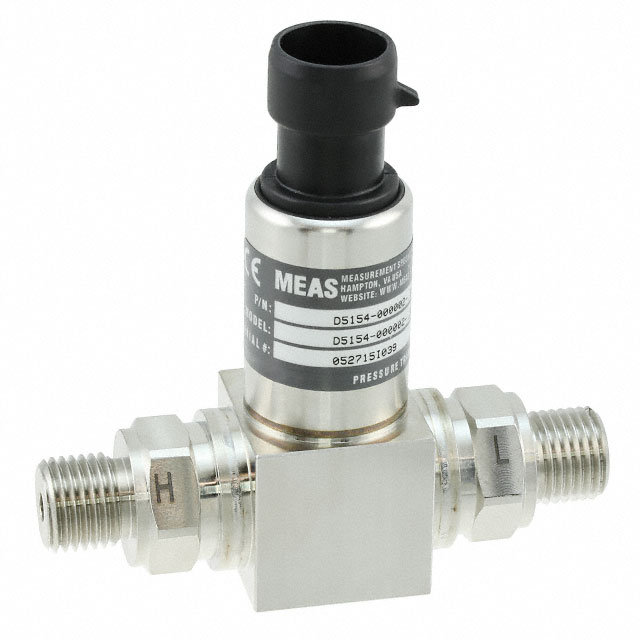

D5154-000002-.35BD

Active

TE Connectivity Measurement Specialties

SENSOR PRESSURE

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR PRESSURE

Technical Specifications

Parameters and characteristics for this part

Part	Output [Max]	Output [Min]	Applications	Output Type	Pressure Type	Accuracy	Port Style	Operating Pressure	Operating Pressure	Features	Maximum Pressure	Maximum Pressure [Max]	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Port Size	Port Size	Operating Pressure [custom]	Operating Pressure [custom]	Maximum Pressure [Max]
TE Connectivity Measurement Specialties D5154-000005-005PD	20 mA	4 mA	Industrial Automation	Analog Current	Differential	0.25 %	Threaded	34.47 kPa	5 PSI	Temperature Compensated	103.42 kPa	15 PSI	NPT	0.25 "	6.35 mm	Male	125 °C	-40 °C	Cylinder	30 VDC	9 V
TE Connectivity Measurement Specialties D5154-000002-.35BD	20 mA	4 mA	Industrial Automation	Analog Current	Differential	0.25 %	Threaded	350 mbar	5.08 PSI	Temperature Compensated	105 kPa	15.23 PSI					125 °C	-40 °C	Cylinder	30 VDC	9 V	BSPP Male	6.35 mm
TE Connectivity Measurement Specialties D5154-000005-015PD	20 mA	4 mA	Industrial Automation	Analog Current	Differential	0.1 %	Threaded			Temperature Compensated		45 PSI	NPT	0.25 "	6.35 mm	Male	125 °C	-40 °C	Cylinder	30 VDC	9 V			15 PSI	103.42 kPa	310.26 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 679.24

General part information

SENSOR PRESSURE

Technical documentation and resources

No documents available
