MA515.C.CG.001
ActiveTAOGLAS

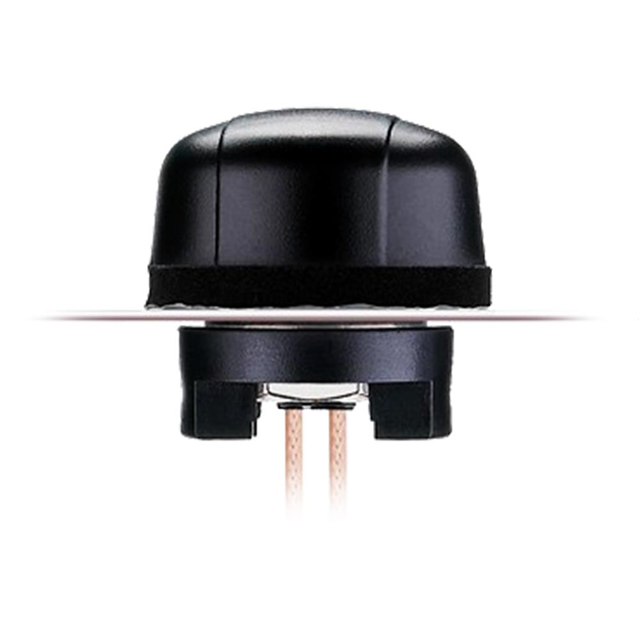

RF ANT 2.4GHZ DOME RP-SMA MALE
Deep-Dive with AI
Search across all available documentation for this part.
MA515.C.CG.001
ActiveTAOGLAS
RF ANT 2.4GHZ DOME RP-SMA MALE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MA515.C.CG.001 |
|---|---|
| Antenna Type | Dome |
| Applications | Bluetooth, WLAN, Zigbee™ |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 3 dBi |
| Height (Max) [Max] [z] | 29 mm |
| Height (Max) [Max] [z] | 1.142 in |
| Ingress Protection | IP69K |
| Number of Bands | 1 |
| Power - Max [Max] | 2 W |
| Return Loss | -10 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | RP-SMA Male |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 88.54 | |
| 100 | $ 79.68 | |||
Description
General part information
MA515 Series
RF ANTENNA Bluetooth, WLAN, Zigbee™ Dome RP-SMA Male Panel Mount
Documents
Technical documentation and resources
No documents available
