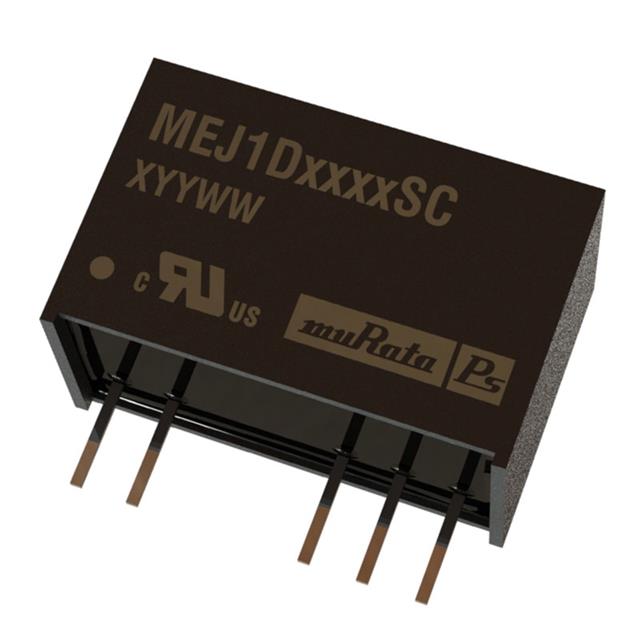

MEJ1D1205SC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-5V 1W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-5V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Package / Case	Mounting Type	Features	Voltage - Isolation	Number of Outputs	Current - Output (Max)
Murata Power Solutions Inc. MEJ1D1209SC	0.39 "	19.7 mm	12.7 mm	0.5 in	0.77 in	10 mm	9 V	10.8 V	13.2 V	-9 V	55 mA	Isolated Module	ITE (Commercial) Medical	85 °C	-40 °C	73 %	7-SIP Module 5 Leads	Through Hole	SCP	5.2 kV	2
Murata Power Solutions Inc. MEJ1D1215SC	0.39 "	19.7 mm	12.7 mm	0.5 in	0.77 in	10 mm	15 V	10.8 V	13.2 V	-15 V	33 mA	Isolated Module	ITE (Commercial) Medical	85 °C	-40 °C	77 %	7-SIP Module 5 Leads	Through Hole	SCP	5.2 kV	2
Murata Power Solutions Inc. MEJ1D1205SC	0.39 "	19.7 mm	12.7 mm	0.5 in	0.77 in	10 mm	5 V	10.8 V	13.2 V	-5 V	100 mA	Isolated Module	ITE (Commercial) Medical	85 °C	-40 °C	75.5 %	7-SIP Module 5 Leads	Through Hole	SCP	5.2 kV	2	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 10.8V - 13.2V Input
