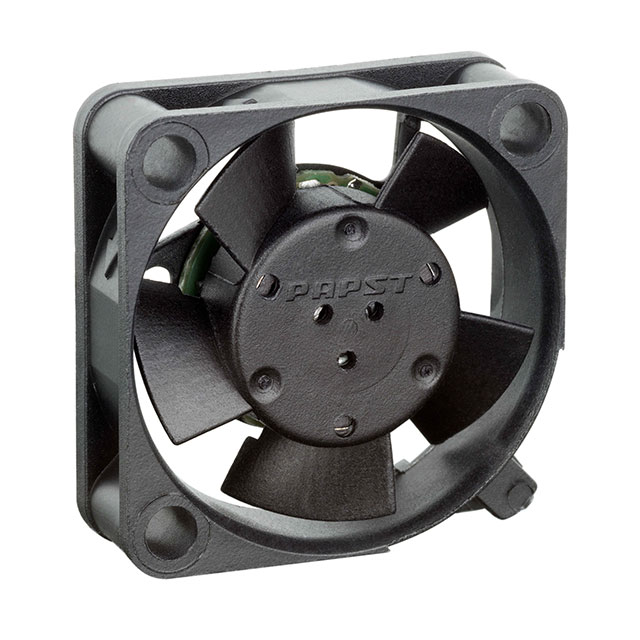

252N

Active

ebm-papst Inc.

FAN AXIAL 25X8MM 12VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 25X8MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	252N

Air Flow	0.053 mł/min
Air Flow	1.9 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Sintec
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.5 W
RPM	9000 RPM
Size / Dimension [x]	25 mm
Size / Dimension [z]	25 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	14 V
Voltage Range [Min]	10 VDC
Weight	0.011 lb
Weight	4.99 g
Width [y]	8 mm

Part	Material - Blade	RPM	Material - Frame	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Fan Type	Weight	Weight	Termination	Voltage - Rated	Bearing Type	Lifetime @ Temp.
ebm-papst Inc. 252N	Fiberglass Reinforced Nylon Polyamide (PA)	9000 RPM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	CE CSA UL VDE	25 mm	25 mm	14 V	10 VDC	0.053 mł/min	1.9 CFM	8 mm	70 °C	70 °C	-10 °C	-10 °C	0.5 W	Tubeaxial	0.011 lb	4.99 g	2 Wire Leads	12 VDC	Sintec	40000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 25mm L x 25mm H Sintec 1.9 CFM (0.053m³/min) 2 Wire Leads
