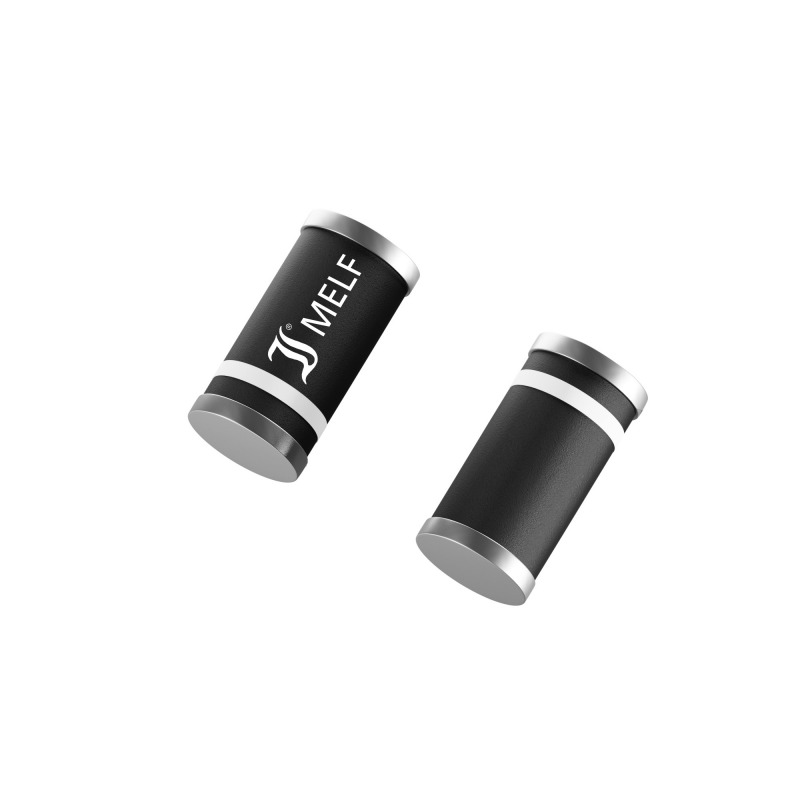

SUF4007-CT

Active

Diotec Semiconductor

DIODE GEN PURP 1KV 1A DO213AB

Search across all available documentation for this part.

Active

Diotec Semiconductor

DIODE GEN PURP 1KV 1A DO213AB

Technical Specifications

Parameters and characteristics for this part

Specification	SUF4007-CT

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-50 °C
Package / Case	DO-213AB, MELF
Reverse Recovery Time (trr)	75 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-213AB
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Part	Package / Case	Mounting Type	Current - Average Rectified (Io)	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Reverse Recovery Time (trr)	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Speed	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package
Diotec Semiconductor SUF4007-CT	DO-213AB MELF	Surface Mount	1 A	-50 °C	175 ░C	75 ns	Standard	1000 V	5 µA	200 mA 500 ns	1.7 V	DO-213AB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 1000 V 1A Surface Mount DO-213AB
