SML-LX2832IGC-TR

Obsolete

Lumex Opto/Components Inc.

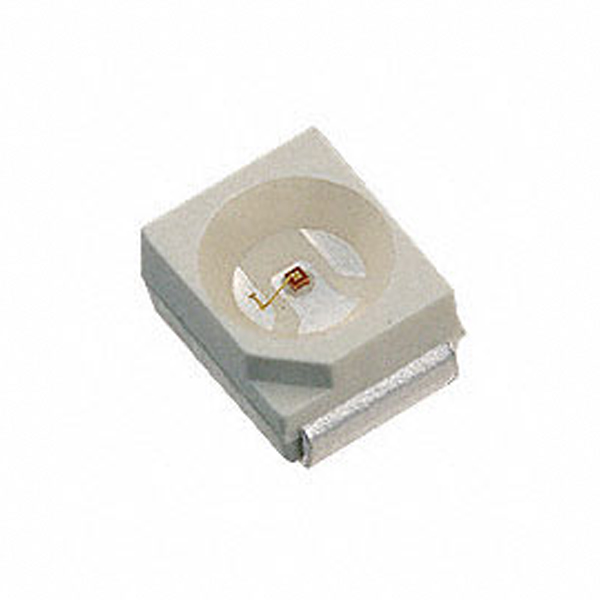

LED GREEN/RED CLEAR 2832 SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SML-LX2832IGC-TR

Obsolete

Lumex Opto/Components Inc.

LED GREEN/RED CLEAR 2832 SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LX2832IGC-TR

Color	Red, Green
Configuration	Independent
Current - Test	20 mA, 20 mA
Height (Max) [Max] [z]	2.1 mm
Lens Color	Colorless
Lens Size [diameter]	2.4 mm
Lens Transparency	Clear
Millicandela Rating	25 mcd, 25 mcd
Mounting Type	Surface Mount
Package / Case	4-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	2.8 mm
Supplier Device Package	2832
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.2 V, 2 V
Wavelength - Peak	565 nm, 635 nm

SML-LX2832 Series

Part	Configuration	Lens Size [diameter]	Viewing Angle	Color	Package / Case	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Millicandela Rating	Height (Max) [Max] [z]	Lens Transparency	Lens Color	Mounting Type	Voltage - Forward (Vf) (Typ)	Current - Test	Wavelength - Peak [custom]	Current - Test	Millicandela Rating	Millicandela Rating [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SML-LX2832YGC-TR	Independent	2.4 mm	120 °	Green Yellow	2-PLCC	565 nm 585 nm	2.8 mm	3.2 mm	2832	15mcd Yellow 25mcd Green	2.1 mm	Clear	Colorless	Surface Mount	2.1 V 2.2 V	20 mA 20 mA
Lumex Opto/Components Inc. SML-LX2832IYC-TR	Independent	2.4 mm	120 °	Red Yellow	4-PLCC		2.8 mm	3.2 mm	2832		2.1 mm	Clear	Colorless	Surface Mount	2 V 2.1 V		585 nm 635 nm	20mA Red 20mA Yellow
Lumex Opto/Components Inc. SML-LX2832SOC-TR	Standard	2.4 mm	120 °		2-PLCC	610 nm	2.8 mm	3.2 mm	2832		2.1 mm	Clear	Colorless	Surface Mount	2 V	20 mA			300 mcd
Lumex Opto/Components Inc. SML-LX2832SRC/B-TR	Standard	2.4 mm	120 °	Red	2-PLCC	660 nm	2.8 mm	3.2 mm	2832		2.1 mm	Clear	Colorless	Surface Mount	1.7 V	20 mA			65 mcd
Lumex Opto/Components Inc. SML-LX2832IGC-TR	Independent	2.4 mm	120 °	Green Red	4-PLCC	565 nm 635 nm	2.8 mm	3.2 mm	2832		2.1 mm	Clear	Colorless	Surface Mount	2 V 2.2 V	20 mA 20 mA			25 mcd 25 mcd
Lumex Opto/Components Inc. SML-LX2832GC-TR	Standard	2.4 mm	120 °	Green	2-PLCC	565 nm	2.8 mm	3.2 mm	2832		2.1 mm	Clear	Colorless	Surface Mount	2.1 V	20 mA			25 mcd
Lumex Opto/Components Inc. SML-LX2832SIC-TR	Standard	2.4 mm	120 °	Red	2-PLCC	636 nm	2.8 mm	3.2 mm	2832		2.1 mm	Clear	Colorless	Surface Mount	2 V	20 mA			250 mcd
Lumex Opto/Components Inc. SML-LX2832GYC-TR	Independent	2.4 mm	120 °	Green Yellow	4-PLCC	565 nm 585 nm	2.8 mm	3.2 mm	2832		2.1 mm	Clear	Colorless	Surface Mount	2.1 V 2.2 V	20 mA 20 mA				25 mcd	15 mcd
Lumex Opto/Components Inc. SML-LX2832SGC-TR	Standard	2.4 mm	120 °	Green	2-PLCC	565 nm	2.8 mm	3.2 mm	2832		2.1 mm	Clear	Colorless	Surface Mount	2.1 V	20 mA			28 mcd
Lumex Opto/Components Inc. SML-LX2832SYC-TR	Standard	2.4 mm	120 °	Yellow	2-PLCC	590 nm	2.8 mm	3.2 mm	2832		2.1 mm	Clear	Colorless	Surface Mount	2 V	20 mA			140 mcd
